Fiber Optic Patch Cord, Multi-fiber, Singlemode
Configure Product Variants
Build America Buy America (BABA)*
Rely on CommScope for Broadband Equity Access and Development (BEAD) Program and other government funded projects
Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.
Features and Benefits
Pre-terminated 1.2 mm multi-fiber cable assemblies, to increase density in your optical distribution frames (ODFs) and accelerate fiber deployment. Our cable assemblies designed for a wide variety of in-building applications and can be configured for your specific needs. These multi-fiber cable assemblies provide fast plug-and-play turn up of new customers and services. They are designed for use with all ODF systems, including CommScope’s popular NG4 frame, enabling you to support greater fiber density without sacrificing manageability.
These in-building assemblies use no metallic strength members and are designed to meet the fire-resistant characteristics required in a variety of central office applications. All assembly components have passed the rigorous requirements of the Telcordia GR specifications.
These in-building assemblies use no metallic strength members and are designed to meet the fire-resistant characteristics required in a variety of central office applications. All assembly components have passed the rigorous requirements of the Telcordia GR specifications.
- Breakout types: Double-ended breakouts or breakouts-to-stub end
- Fiber counts: 4, 8, 12, 24, 36, 48, 72, 96 and 144 stranded fibers
- Use ratings: Plenum- or Dual Rated (LSZH/Riser)
- Connector: 22 combinations using ultra-polished or angle-polished MPO, SC, LC and stub end
- Breakout lengths: 20 inches to 120 inches
- Available with or without pulling socks
- All fiber optic cable is tested in accordance with GR-409
- All single fiber connectors are tested to GR-326 performance specifications
- All MPO fiber connectors are tested to GR-1435 performance specifications
- *Product complies with the Build America, Buy America Act (BABAA) requirements of the Infrastructure Investment and Jobs Act of 2021 (Pub. L. 117- 58, §§ 70901-70953), or is the subject of a waiver approved by the Secretary of Commerce or designee. Compliance requirements and waiver applicability vary based on government funding program. Check the laws and regulations for your specific program.
Specifications
Product Classification
Regional Availability | Asia | Australia/New Zealand | Europe | Latin America | Middle East/Africa | North America |
UNSPSC | 26121650 |
Product Type | Fiber distribution cable assembly |
Government Requirements | Build America Buy America (BABA) compliant* |
General Specifications
Location of Manufacturing | Claremont, North Carolina |

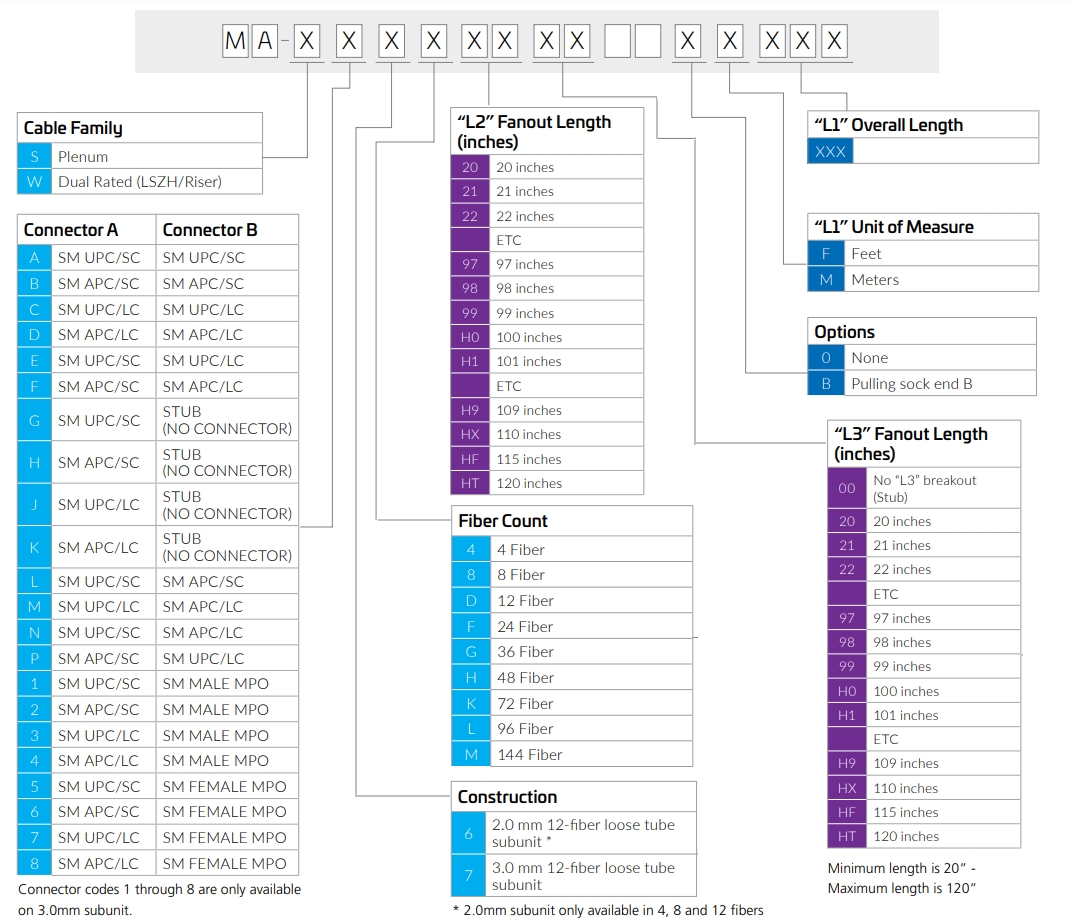

Ordering Tree
Click on image to enlarge. |
Product Classification
Regional Availability | Asia | Australia/New Zealand | Europe | Latin America | Middle East/Africa | North America |
UNSPSC | 26121650 |
Product Type | Fiber distribution cable assembly |
Government Requirements | Build America Buy America (BABA) compliant* |
General Specifications
Location of Manufacturing | Claremont, North Carolina |
Click on image to enlarge. |
Documentation & Downloads
Ordering Guide
Product Compliance Documentation
Product Specification
Warranty
Ordering Guide
Product Compliance Documentation
Product Specification
Warranty
