EH0194-004 | OCP-L2-15DASEN-XX-(12)-AP

Base Product: OCP

  • Available in:
  • Asia

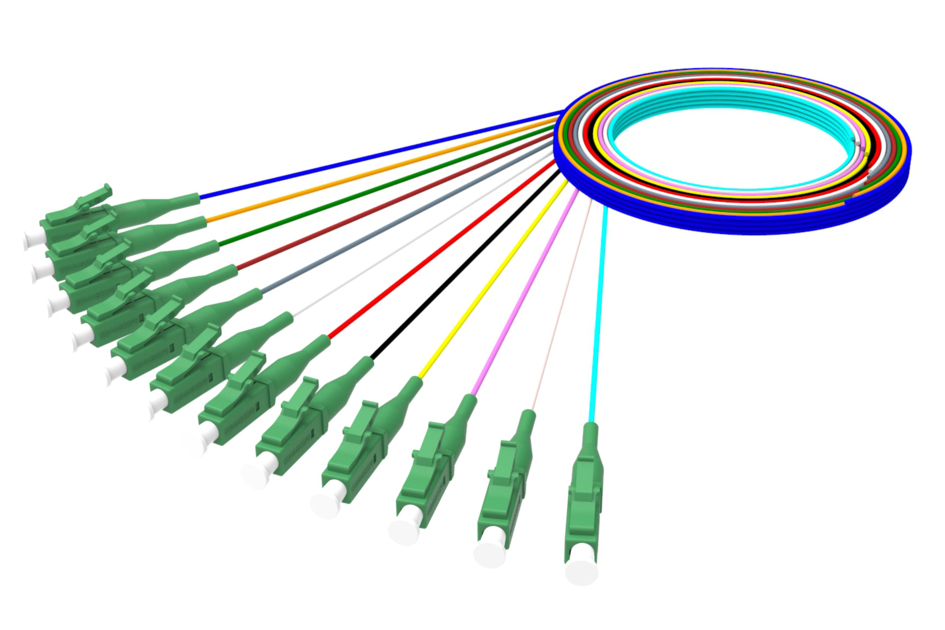

Fiber Optic Pigtail, 12 color kit, Singlemode, LC/APC to Stub, 0.9 mm diameter, 1.5 m

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download

Product classification

Regional Availability Asia
Product Type Fiber pigtail, jacketed
Product Series OCP

General Specifications

Connector A, quantity 12
Color, boot A Green
Color, connector A Green
Interface, Connector A LC/APC
Interface, Connector B Unterminated
Total Fibers, quantity 12

Dimensions

Cord Length 1.5 m | 4.921 ft
Diameter Over Jacket 0.9 mm | 0.035 in

Optical Specifications

Fiber Mode Singlemode
Fiber Type G.657.A1

Environmental Specifications

Operating Temperature Note Specification applicable to non-terminated bulk fiber cable
Environmental Space Low Smoke Zero Halogen (LSZH)

Packaging and Weights

Packaging quantity 12

Regulatory Compliance/Certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS Compliant
UK-ROHS Compliant
