FHD-HN1R-0050F

Base Product: FHD-TEST-CORD

Available in:
Australia/New Zealand
EMEA
Latin America
North America

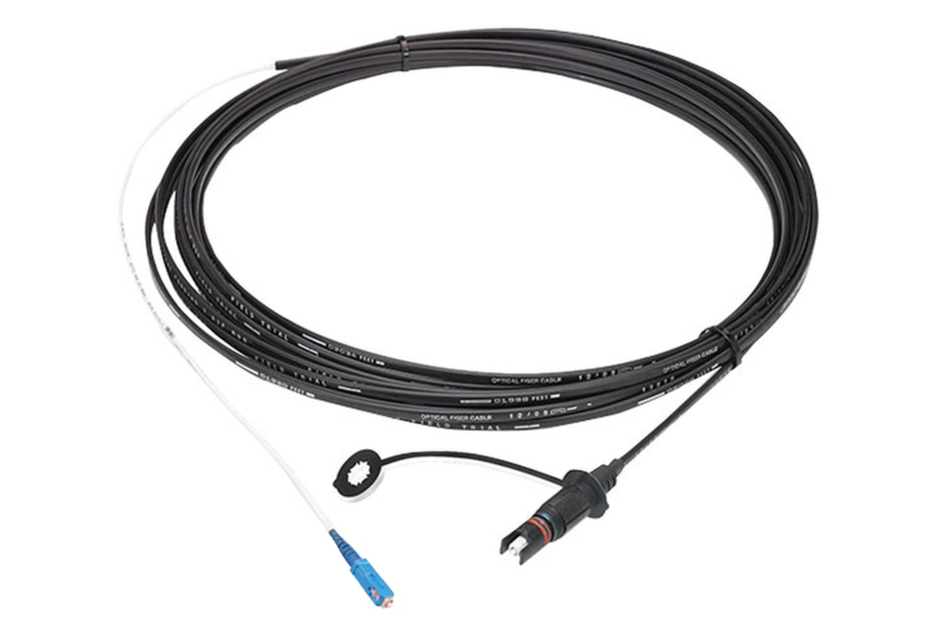

Fiber Optic Drop Cable, hardened full-size to SC/UPC, 3mm Test Cord , 50 ft

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Features and Benefits

Hardened connectors are factory-terminated and environmentally sealed for use in optical drop cable deployments
Hardened drop cables incorporate hardened connector technology that is designed to withstand the rugged outside plant environment
Hardened drop cables simplify installation and maintenance by reducing splicing requirements in the distribution portion of the network

Specifications

Product classification

Regional Availability	Australia/New Zealand \| EMEA \| Latin America \| North America
Product Type	Test patch cord, single fiber
Product Series	FHD

General Specifications

Connector A, quantity	1
Color, boot A	Black
Color, connector A	Black
Connector B, quantity	1
Color, boot B	Green
Color, connector B	Green
Interface, Connector A	Hardened full-size SC/APC
Interface Feature, connector A	Male
Interface, Connector B	SC/UPC
Jacket Color	Black
Pulling Grips, quantity	1
Total Fibers, quantity	1
Transmission Standards	IEC 61753-1 \| IEC 61754-4 \| IEC 61755

Dimensions

Height Over Jacket	4.4 mm \| 0.173 in
Width Over Jacket	7.4 mm \| 0.291 in
Cord Length	15.24 m \| 50 ft

Ordering Tree

Click on image to enlarge.

Material Specifications

Jacket Material

Dielectric - Universal Flat

Mechanical Specifications

Minimum Bend Radius, loaded	100 mm \| 3.937 in
Minimum Bend Radius, unloaded	150 mm \| 5.906 in
Tensile Load, long term, maximum	450 N \| 101.164 lbf
Tensile Load, short term, maximum	1300 N \| 292.252 lbf
Cable Crush Resistance, maximum	44 N/mm \| 251.247 lbf/in

Optical Specifications

Fiber Mode	Singlemode
Fiber Type	G.657.A2, TeraSPEED®
Insertion Loss, maximum, connector A	0.4 dB
Insertion Loss, maximum, connector B	0.35 dB
Return Loss, minimum, connector A	65 dB
Return Loss, minimum, connector B	65 dB

Environmental Specifications

Operating Temperature	-40 °C to +75 °C (-40 °F to +167 °F)
Operating Temperature Note	Specification applicable to non-terminated bulk fiber cable
Storage Temperature	-40 °C to +75 °C (-40 °F to +167 °F)
Environmental Space	Outdoor, buried
Qualification Standards	NEMA type 6, 10 ft waterhead \| Telcordia GR-20 \| Telcordia GR-3120

Packaging and Weights

Cable weight	30 kg/km \| 20.159 lb/kft
Packaging quantity	1

Regulatory Compliance/Certifications

Agency	Classification
CHINA-ROHS	Above maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS	Compliant/Exempted
UK-ROHS	Compliant/Exempted
