760164061 | OVRHDVCM
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

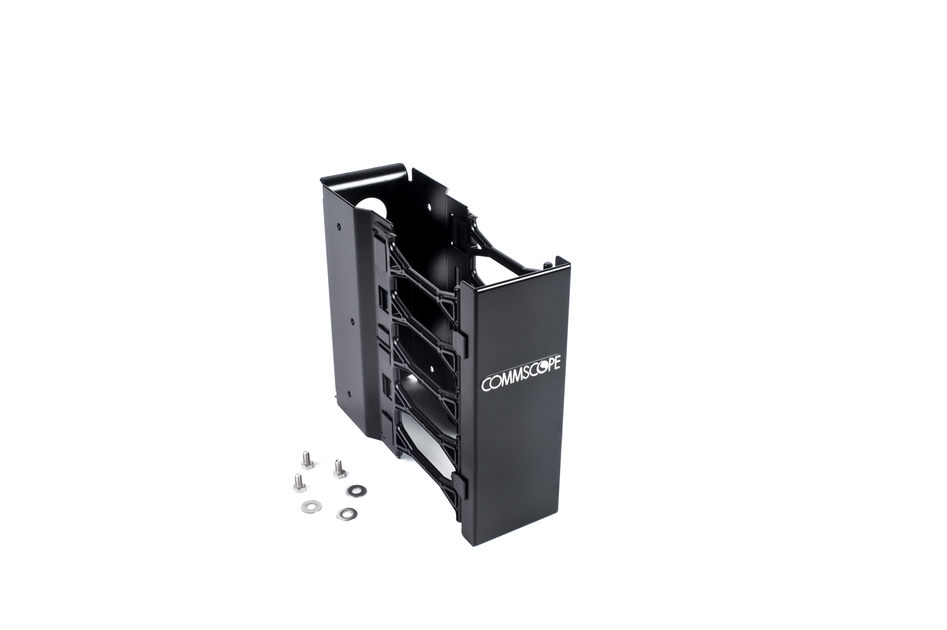

Mini Vertical Cable Management for Overhead Patch Panel Rack, 4U, black
Specifications
Product classification
Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
Portfolio | CommScope® |
Product Type | Vertical cable management |
General Specifications
Configuration Type | Overhead |
Color | Black |
Rack Type | EIA 19 in |
Rack Units | 4 |
Dimensions
Height | 6064.504 mm | 238.76 in |
Channel Width | 101.6 mm | 4 in |
Width | 2451.608 mm | 96.52 in |
Depth | 6709.664 mm | 264.16 in |
Material Specifications
Finish | Powder-coated, smooth |
Material Type | Steel |
Packaging and Weights
Included | Instruction sheet | Mini vertical cable management, with cover | Three 1/4-20 hex screws | Three flat washers |
Packaging quantity | 1 |
Packaging Type | Assembled |
Weight, net | 0.821 kg | 1.81 lb |
Regulatory Compliance/Certifications
Agency | Classification |
CHINA-ROHS
![]() |
Below maximum concentration value |
ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
ROHS | Compliant |
UK-ROHS | Compliant |
Product classification
Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
Portfolio | CommScope® |
Product Type | Vertical cable management |
General Specifications
Configuration Type | Overhead |
Color | Black |
Rack Type | EIA 19 in |
Rack Units | 4 |
Dimensions
Height | 6064.504 mm | 238.76 in |
Channel Width | 101.6 mm | 4 in |
Width | 2451.608 mm | 96.52 in |
Depth | 6709.664 mm | 264.16 in |
Material Specifications
Finish | Powder-coated, smooth |
Material Type | Steel |
Packaging and Weights
Included | Instruction sheet | Mini vertical cable management, with cover | Three 1/4-20 hex screws | Three flat washers |
Packaging quantity | 1 |
Packaging Type | Assembled |
Weight, net | 0.821 kg | 1.81 lb |
Regulatory Compliance/Certifications
Agency | Classification |
CHINA-ROHS
![]() |
Below maximum concentration value |
ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
ROHS | Compliant |
UK-ROHS | Compliant |
