FGS-BTBL-C
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

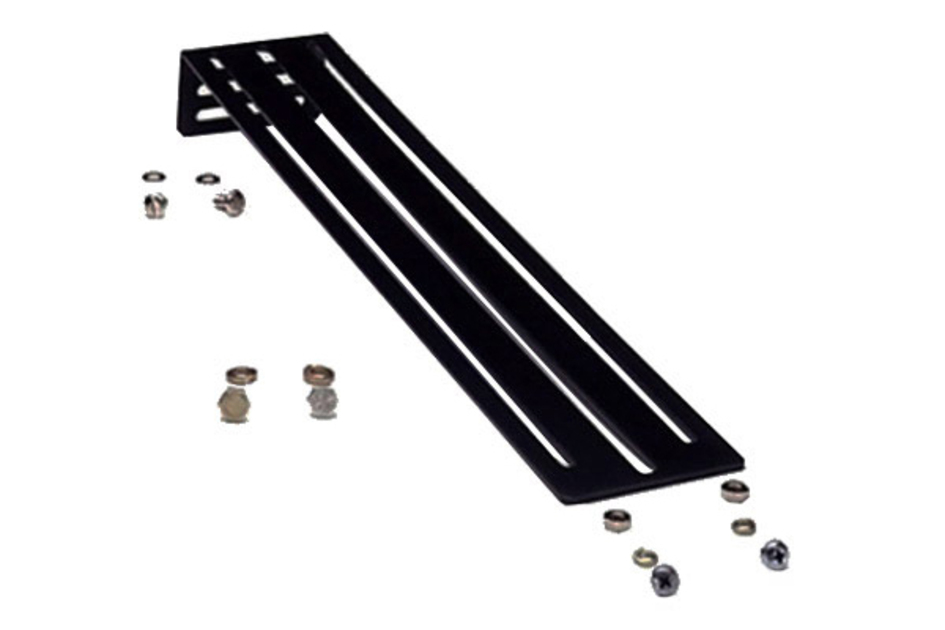

FiberGuide® Bay Top Long "L" Bracket Kit, 2x2in
FiberGuide® Design Pro
A configuration tool that allows users to import layouts, design 3D raceways and export detailed drawings and BOMs.
Get access
Specifications
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Support mounting kit |
| Product Brand | FiberGuide® |
| Product Series | FGS |
General Specifications
| Color | Black |
| Orientation | Horizontal |
| Section Type | Bracket |
| Bracket Type | L-bracket |
| Bracket Installation Type | N/A |
| Attachment Type | Equipment rack |
Dimensions
| Height | 92 mm | 3.622 in |
| Width | 392 mm | 15.433 in |
| Thread Size | N/A |
| System Dimensions | 51 mm x 51 mm (2 in x 2 in) |
Packaging and Weights
| Weight, net | 0.767 kg | 1.691 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Support mounting kit |
| Product Brand | FiberGuide® |
| Product Series | FGS |
General Specifications
| Color | Black |
| Orientation | Horizontal |
| Section Type | Bracket |
| Bracket Type | L-bracket |
| Bracket Installation Type | N/A |
| Attachment Type | Equipment rack |
Dimensions
| Height | 92 mm | 3.622 in |
| Width | 392 mm | 15.433 in |
| Thread Size | N/A |
| System Dimensions | 51 mm x 51 mm (2 in x 2 in) |
Packaging and Weights
| Weight, net | 0.767 kg | 1.691 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
