FGS-HNTS-F-12MM-LP

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

FiberGuide® Low-Profile Top Support C-Bracket Kit, 12mm for 4x12in System

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download
FiberGuide Design Pro - hero - portrait
FiberGuide® Design Pro

A configuration tool that allows users to import layouts, design 3D raceways and export detailed drawings and BOMs.
Get access

BABA-compliant
Build America Buy America (BABA)*

Rely on CommScope for Broadband Equity Access and Development (BEAD) Program and other government funded projects

Broadband for Everyone Program

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Support mounting kit
Product Brand FiberGuide®
Product Series FGS
Minimum Order Quantity 10

General Specifications

Color Black
Orientation Horizontal
Section Type Bracket
Bracket Type C-bracket
Bracket Installation Type N/A
Attachment Type Threaded rod

Dimensions

Height 203.2 mm | 8.000 in
Width 38.1 mm | 1.500 in
Length 381 mm | 15.000 in
Thread Size 12 mm
System Dimensions 102 mm x 305 mm (4 in x 12 in)

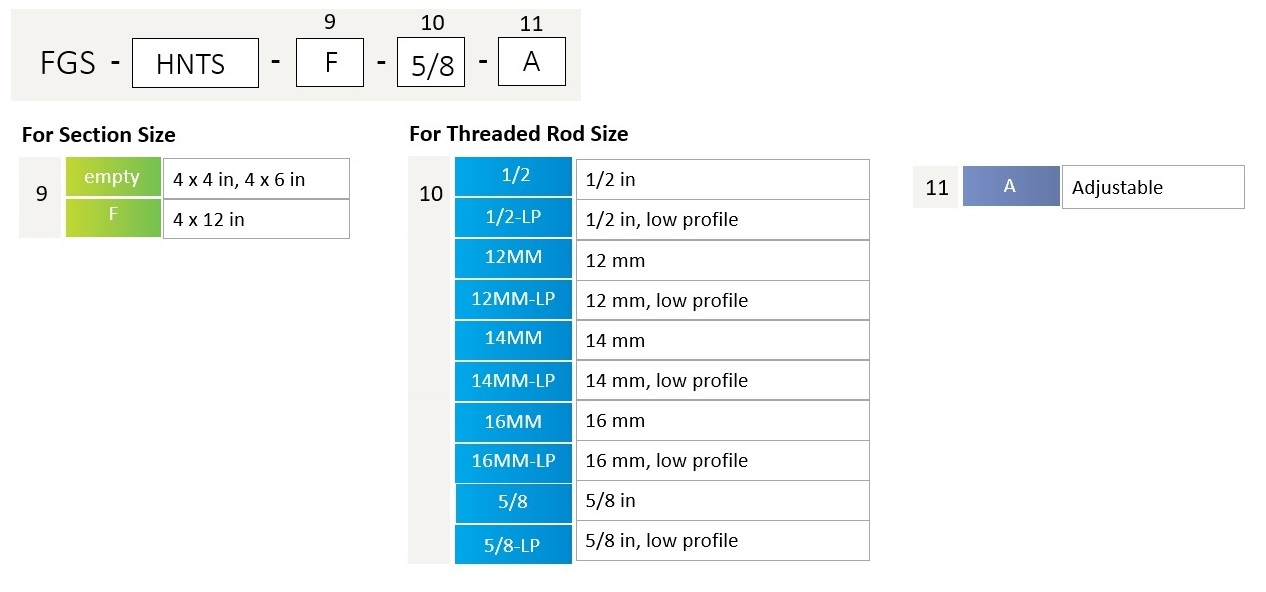

Ordering Tree

Click on image to enlarge.

Material Specifications

Material Type Carbon steel

Packaging and Weights

Included Hardware
Packaging quantity 1
Weight, net 4.736 kg | 10.441 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Support mounting kit
Product Brand FiberGuide®
Product Series FGS
Minimum Order Quantity 10

General Specifications

Color Black
Orientation Horizontal
Section Type Bracket
Bracket Type C-bracket
Bracket Installation Type N/A
Attachment Type Threaded rod

Dimensions

Height 203.2 mm | 8.000 in
Width 38.1 mm | 1.500 in
Length 381 mm | 15.000 in
Thread Size 12 mm
System Dimensions 102 mm x 305 mm (4 in x 12 in)

Material Specifications

Material Type Carbon steel

Packaging and Weights

Included Hardware
Packaging quantity 1
Weight, net 4.736 kg | 10.441 lb
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
