FGS-KTW1-E

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

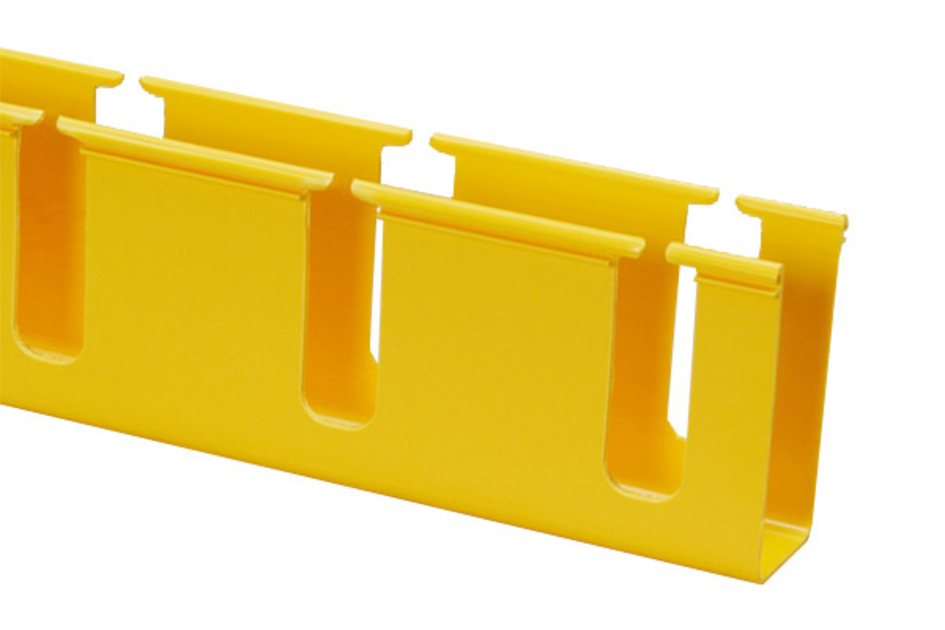

FiberGuide® Vertical Duct Kit with 4in Slot Spacing and Snap-On Cover, 2x1in, Yellow

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
FiberGuide Design Pro - hero - portrait
FiberGuide® Design Pro

A configuration tool that allows users to import layouts, design 3D raceways and export detailed drawings and BOMs.
Get access

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Slotted vertical with snap-on cover
Product Brand FiberGuide®
Product Series FGS

General Specifications

Product Feature Slotted
Color Yellow
Orientation Vertical
Section Type Straight section

Dimensions

Height 50.8 mm | 2.000 in
Width 25.4 mm | 1.000 in
Length 1829 mm | 72.008 in
System Dimensions 51 mm x 25 mm (2 in x 1 in)

Material Specifications

Material Type Engineering Thermoplastic

Environmental Specifications

Flammability Rating CSA S143 | UL 2024 | UL 94 V-0
Halogen Characteristics Blue Angel | TCO '99 | WEEE
Safety Standard CSA | UL

Packaging and Weights

Included Hardware
Packaging quantity 1
Weight, net 0.94 kg | 2.072 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Slotted vertical with snap-on cover
Product Brand FiberGuide®
Product Series FGS

General Specifications

Product Feature Slotted
Color Yellow
Orientation Vertical
Section Type Straight section

Dimensions

Height 50.8 mm | 2.000 in
Width 25.4 mm | 1.000 in
Length 1829 mm | 72.008 in
System Dimensions 51 mm x 25 mm (2 in x 1 in)

Material Specifications

Material Type Engineering Thermoplastic

Environmental Specifications

Flammability Rating CSA S143 | UL 2024 | UL 94 V-0
Halogen Characteristics Blue Angel | TCO '99 | WEEE
Safety Standard CSA | UL

Packaging and Weights

Included Hardware
Packaging quantity 1
Weight, net 0.94 kg | 2.072 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
