FGS-MEXP-E-ABF-NC

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

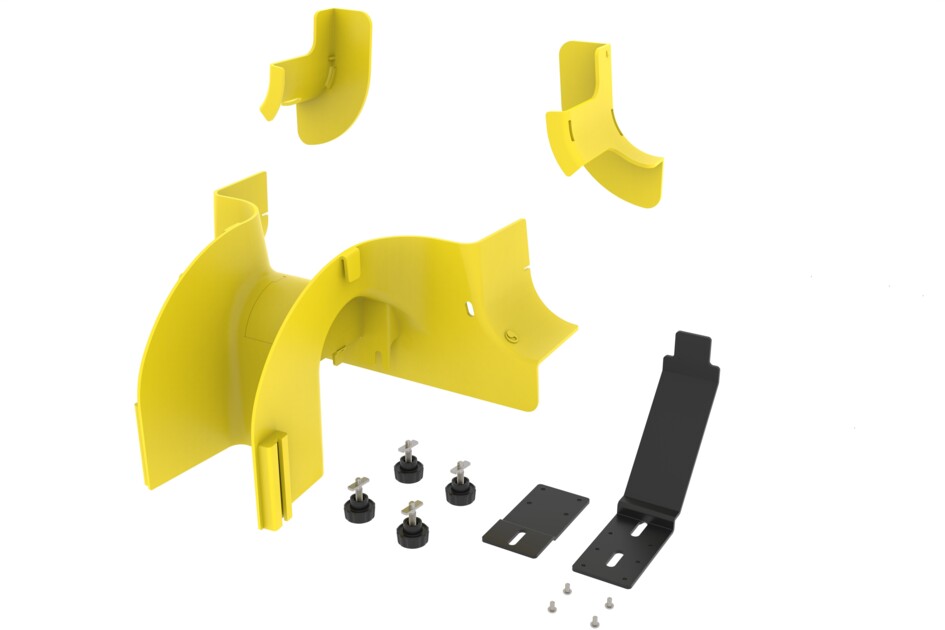

FiberGuide® 4-Inch Express Exit™, Cover Not Included, 4x4, 4x6, 4x12, 4x24in, Yellow

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
FiberGuide Design Pro - hero - portrait
FiberGuide® Design Pro

A configuration tool that allows users to import layouts, design 3D raceways and export detailed drawings and BOMs.
Get access

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Express exit
Product Brand FiberGuide® | FiberGuide®
Product Series FGS

General Specifications

Color Yellow
Orientation Horizontal
Section Type Express exit

Dimensions

Height 189.992 mm | 7.480 in
Width 315.976 mm | 12.440 in
Length 406.4 mm | 16.000 in
System Dimensions 102 mm x 102 mm (4 in x 4 in) | 102 mm x 152 mm (4 in x 6 in) | 102 mm x 305 mm (4 in x 12 in) | 102 mm x 610 mm (4 in x 24 in)

Ordering Tree

Click on image to enlarge.

Material Specifications

Material Type Engineering Thermoplastic

Environmental Specifications

Flammability Rating CSA S143 | UL 2024 | UL 94 V-0
Halogen Characteristics Blue Angel | TCO '99 | WEEE
Safety Standard CSA | UL

Packaging and Weights

Included Hardware
Packaging quantity 1
Weight, net 2.79 kg | 6.151 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Express exit
Product Brand FiberGuide® | FiberGuide®
Product Series FGS

General Specifications

Color Yellow
Orientation Horizontal
Section Type Express exit

Dimensions

Height 189.992 mm | 7.480 in
Width 315.976 mm | 12.440 in
Length 406.4 mm | 16.000 in
System Dimensions 102 mm x 102 mm (4 in x 4 in) | 102 mm x 152 mm (4 in x 6 in) | 102 mm x 305 mm (4 in x 12 in) | 102 mm x 610 mm (4 in x 24 in)

Material Specifications

Material Type Engineering Thermoplastic

Environmental Specifications

Flammability Rating CSA S143 | UL 2024 | UL 94 V-0
Halogen Characteristics Blue Angel | TCO '99 | WEEE
Safety Standard CSA | UL

Packaging and Weights

Included Hardware
Packaging quantity 1
Weight, net 2.79 kg | 6.151 lb
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
