FGS-MHIS-B
- Available in:
- Latin America
- Asia
- EMEA
- Australia/New Zealand
- North America

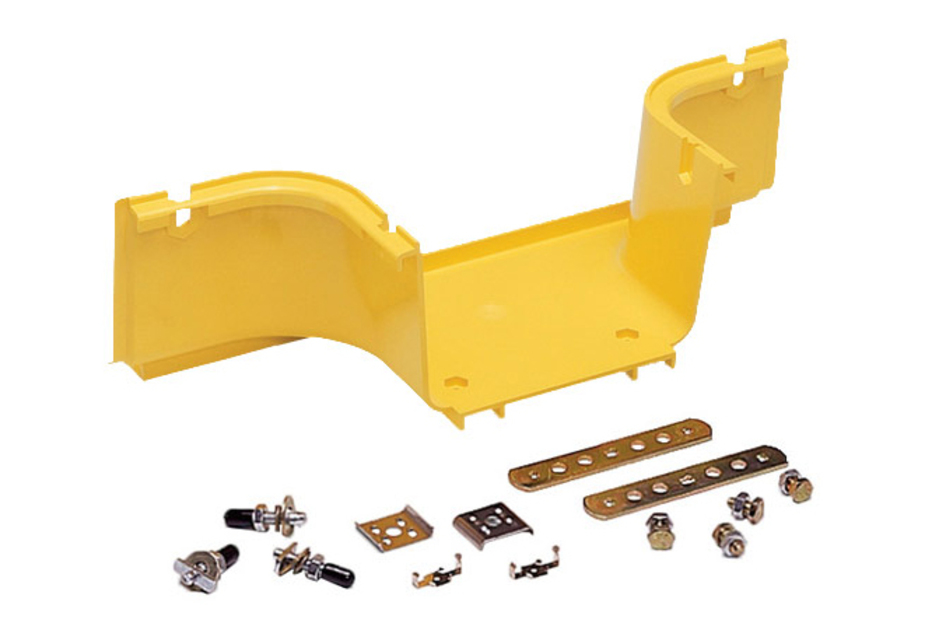

FiberGuide® 6" Cut-in T, yellow
Features and Benefits
- FiberGuide products are designed and manufactured to ensure total off-frame fiber cable protection
- FiberGuide maintains a minimum bend radius throughout the entire system, regardless the system size
- FiberGuide is an optical raceway system for central office, mobile switching center and data center applications
- Engineers and installers can benefit from the large suite of available FiberGuide design tools
Specifications
Product Classification
| Regional Availability | Latin America | Asia | EMEA | Australia/New Zealand | North America |
| Portfolio | CommScope® |
| Product Type | Fiber raceway transitional section |
| Product Brand | FiberGuide® |
General Specifications
| Color | Yellow |
| Orientation | Horizontal |
| Section Type | Tee section |
Dimensions
| Height | 112 mm | 4.409 in |
| Width | 152 mm | 5.984 in |
| Length | 381 mm | 15 in |
| System Dimensions | 6 in x 4 in | 150 mm x 100 mm |
Material Specifications
| Material Type | Engineering Thermoplastic |
Environmental Specifications
| Flammability Rating | CSA S143 | UL 2024 | UL 94 V-0 |
| Halogen Characteristics | Blue Angel | TCO '99 | WEEE |
| Safety Standard | UL | CSA |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | ROHSCompliant |
| CHINA-ROHS | CHINA-ROHSBelow maximum concentration value |
| REACH-SVHC | REACH-SVHCCompliant as per SVHC revision on www.commscope.com/ProductCompliance |
Product Classification
| Regional Availability | Latin America | Asia | EMEA | Australia/New Zealand | North America |
| Portfolio | CommScope® |
| Product Type | Fiber raceway transitional section |
| Product Brand | FiberGuide® |
General Specifications
| Color | Yellow |
| Orientation | Horizontal |
| Section Type | Tee section |
Dimensions
| Height | 112 mm | 4.409 in |
| Width | 152 mm | 5.984 in |
| Length | 381 mm | 15 in |
| System Dimensions | 6 in x 4 in | 150 mm x 100 mm |
Material Specifications
| Material Type | Engineering Thermoplastic |
Environmental Specifications
| Flammability Rating | CSA S143 | UL 2024 | UL 94 V-0 |
| Halogen Characteristics | Blue Angel | TCO '99 | WEEE |
| Safety Standard | UL | CSA |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | ROHSCompliant |
| CHINA-ROHS | CHINA-ROHSBelow maximum concentration value |
| REACH-SVHC | REACH-SVHCCompliant as per SVHC revision on www.commscope.com/ProductCompliance |
