FGS-MSSC-F

  • Available in:
  • Australia/New Zealand
  • Asia
  • Latin America
  • North America
  • EMEA

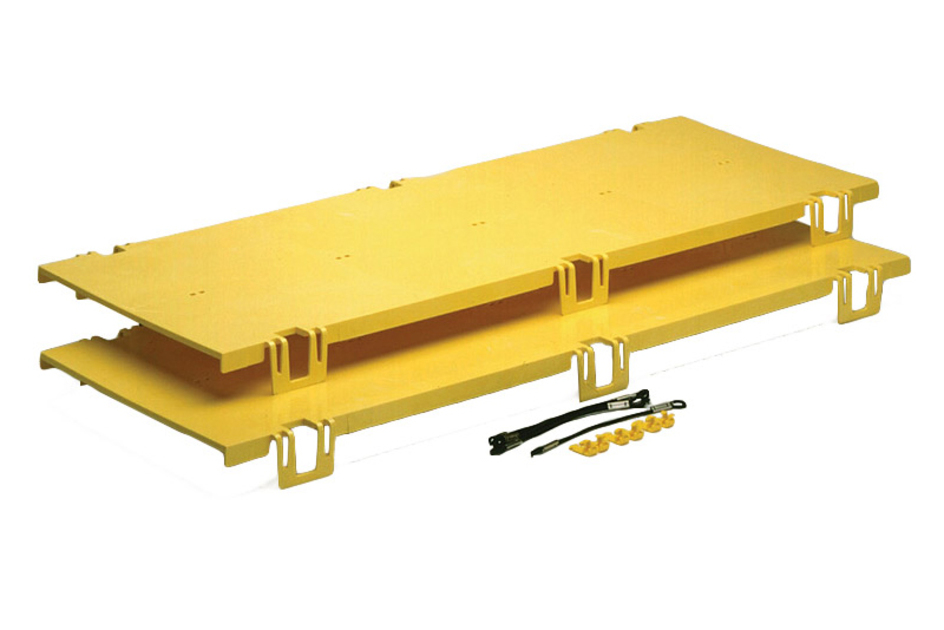

FiberGuide® Snap-on Cover Kit for Horizontal Straight Section, 4 in x 12 in, yellow
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Features and Benefits
  • FiberGuide products are designed and manufactured to ensure total off-frame fiber cable protection
  • FiberGuide maintains a minimum bend radius throughout the entire system, regardless the system size
  • FiberGuide is an optical raceway system for central office, mobile switching center and data center applications
  • Engineers and installers can benefit from the large suite of available FiberGuide design tools
Specifications

Product Classification

Regional Availability Australia/New Zealand | Asia | Latin America | North America | EMEA
Portfolio CommScope®
Product Type Fiber raceway cover
Product Brand FiberGuide®

General Specifications

Color Yellow
Section Type Straight section

Dimensions

System Dimensions 300 mm x 100 mm | 12 in x 4 in

Material Specifications

Material Type Engineering Thermoplastic

Environmental Specifications

Flammability Rating CSA S143 | UL 94 V-0 | UL 2024
Halogen Characteristics Blue Angel | WEEE | TCO '99
Safety Standard CSA | UL

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance

Product Classification

Regional Availability Australia/New Zealand | Asia | Latin America | North America | EMEA
Portfolio CommScope®
Product Type Fiber raceway cover
Product Brand FiberGuide®

General Specifications

Color Yellow
Section Type Straight section

Dimensions

System Dimensions 300 mm x 100 mm | 12 in x 4 in

Material Specifications

Material Type Engineering Thermoplastic

Environmental Specifications

Flammability Rating CSA S143 | UL 94 V-0 | UL 2024
Halogen Characteristics Blue Angel | WEEE | TCO '99
Safety Standard CSA | UL

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
