FGSB-FLEXVAD-7F-C

Base Product: FGS-FLEXV

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

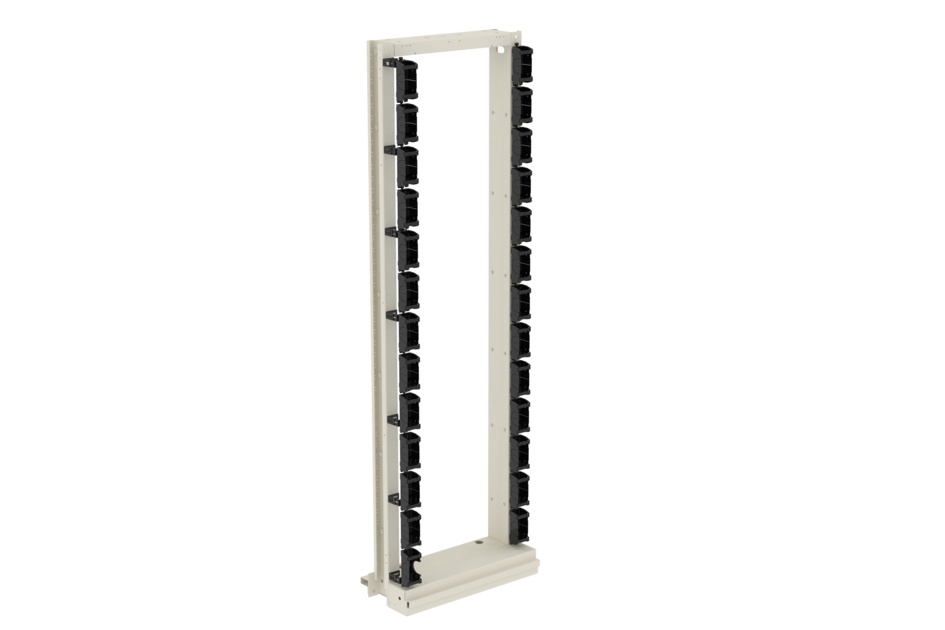

FiberGuide® FlexVertical Kit, 2x2in, 7ft Length, Black

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
FiberGuide Design Pro - hero - portrait
FiberGuide® Design Pro

A configuration tool that allows users to import layouts, design 3D raceways and export detailed drawings and BOMs.
Get access

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Drop kit
Product Brand FiberGuide®
Product Series FGS

General Specifications

Product Feature Snap-together design
Angle/Bend Direction 30°
Color Black
Orientation Vertical
Section Type Vertical section

Dimensions

Height 2209.8 mm | 87.000 in
Width 64.516 mm | 2.540 in
Length 67.056 mm | 2.640 in
System Dimensions 51 mm x 51 mm (2 in x 2 in)

Material Specifications

Material Type Engineering Thermoplastic

Environmental Specifications

Flammability Rating CSA S143 | UL 2024 | UL 94 V-0
Halogen Characteristics Blue Angel | TCO '99 | WEEE
Safety Standard CSA | UL

Packaging and Weights

Included Hardware
Packaging quantity 1
Weight, net 0.676 kg | 1.490 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Drop kit
Product Brand FiberGuide®
Product Series FGS

General Specifications

Product Feature Snap-together design
Angle/Bend Direction 30°
Color Black
Orientation Vertical
Section Type Vertical section

Dimensions

Height 2209.8 mm | 87.000 in
Width 64.516 mm | 2.540 in
Length 67.056 mm | 2.640 in
System Dimensions 51 mm x 51 mm (2 in x 2 in)

Material Specifications

Material Type Engineering Thermoplastic

Environmental Specifications

Flammability Rating CSA S143 | UL 2024 | UL 94 V-0
Halogen Characteristics Blue Angel | TCO '99 | WEEE
Safety Standard CSA | UL

Packaging and Weights

Included Hardware
Packaging quantity 1
Weight, net 0.676 kg | 1.490 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
