FGSB-KT03-CNH

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

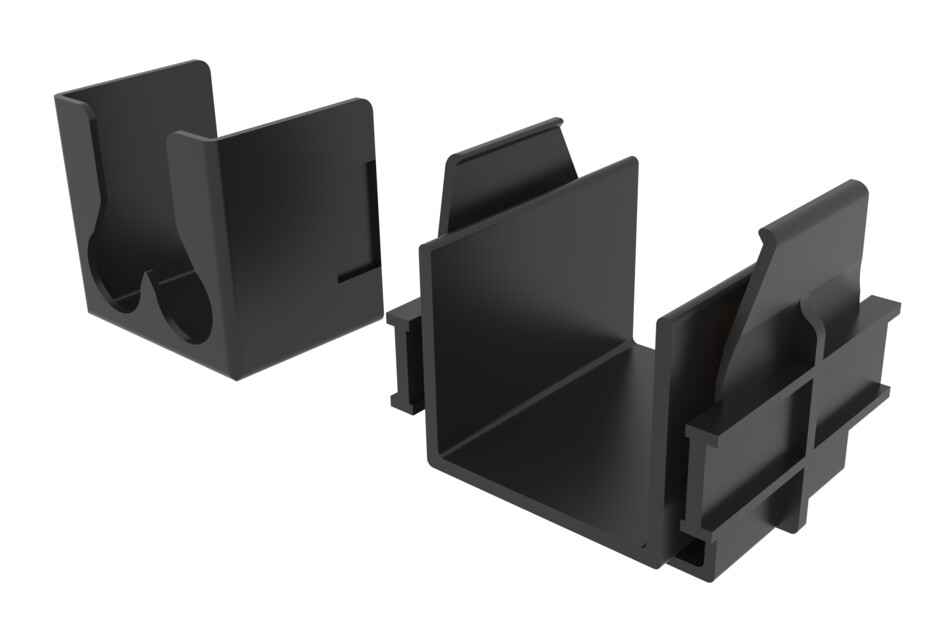

FiberGuide® Dual 7/8in Flex Tube Attachment, 2x2in, Black

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download
FiberGuide Design Pro - hero - portrait
FiberGuide® Design Pro

A configuration tool that allows users to import layouts, design 3D raceways and export detailed drawings and BOMs.
Get access

Product classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Drop kit
Product Brand FiberGuide®
Product Series FGS

General Specifications

Product Feature Round
Color Black
Orientation Vertical
Section Type Adapter

Dimensions

Height 50.8 mm | 2 in
Width 50.8 mm | 2 in
Tube Outer Diameter 22.35 mm | 0.88 in
System Dimensions 51 mm x 51 mm (2 in x 2 in)

Environmental Specifications

Flammability Rating CSA S143 | UL 2024 | UL 94 V-0
Halogen Characteristics Blue Angel | TCO '99 | WEEE
Safety Standard CSA | UL

Packaging and Weights

Weight, net 0.511 kg | 1.127 lb

Regulatory Compliance/Certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS Compliant
UK-ROHS Compliant
