760084087 | CRTWSBK-6W

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

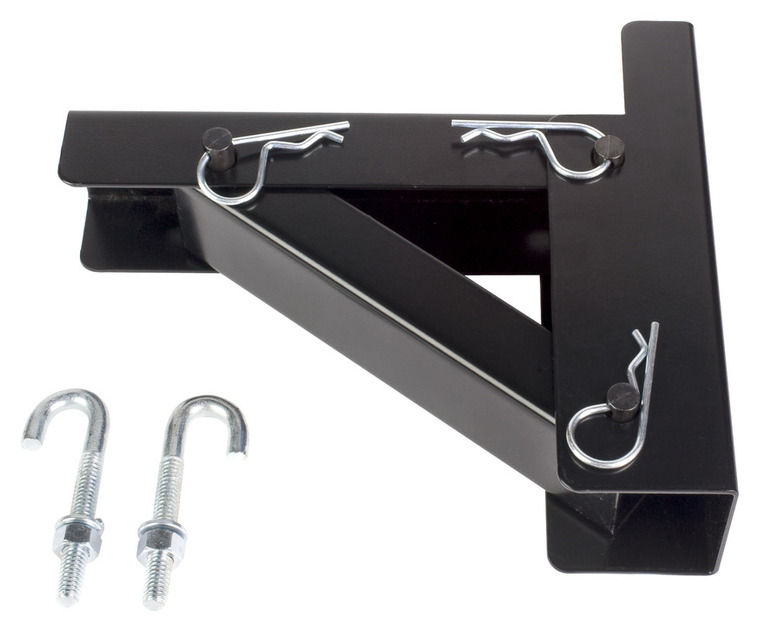

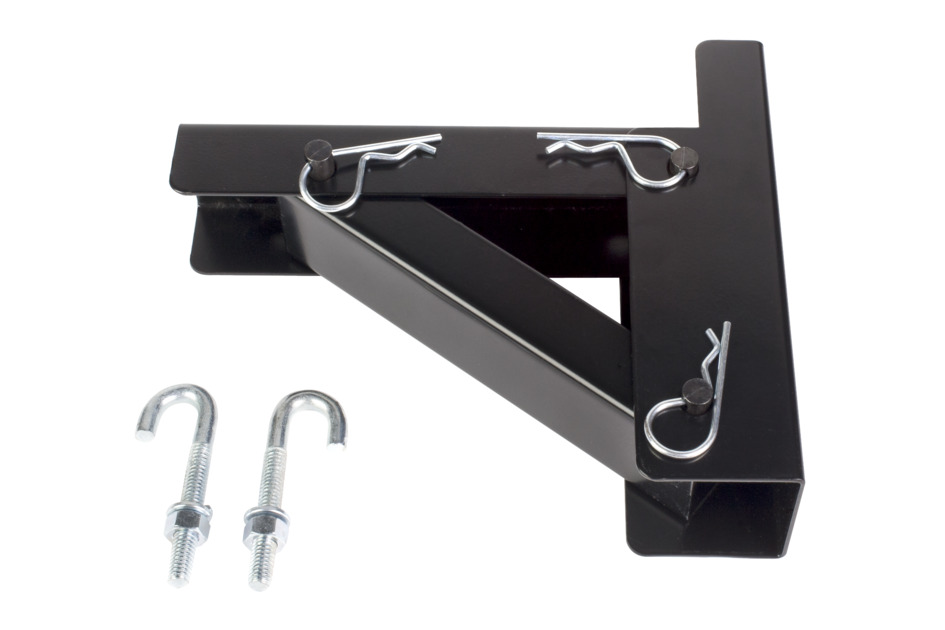

Triangular Runway Wall Support Bracket Kit, 6 in (152mm) W, Black

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Support kit

General Specifications

Color Black

Dimensions

Height 177.8 mm | 7 in
Width 152.4 mm | 6 in
Depth 51.816 mm | 2.04 in

Material Specifications

Finish Powder-coated, smooth
Material Type Steel

Mechanical Specifications

Static Load Rating 20.412 kg | 45 lb

Environmental Specifications

Safety Standard UL | cUL

Packaging and Weights

Included Clevis pin | Gusset support | Instruction sheet | Ladder support bracket | Retaining rings | Two 5/16-18 KEPS hex nuts | Two J-bolts | Wall mount bracket
Packaging quantity 1
Packaging Type Flat packed
Weight, net 2.268 kg | 5 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Support kit

General Specifications

Color Black

Dimensions

Height 177.8 mm | 7 in
Width 152.4 mm | 6 in
Depth 51.816 mm | 2.04 in

Material Specifications

Finish Powder-coated, smooth
Material Type Steel

Mechanical Specifications

Static Load Rating 20.412 kg | 45 lb

Environmental Specifications

Safety Standard UL | cUL

Packaging and Weights

Included Clevis pin | Gusset support | Instruction sheet | Ladder support bracket | Retaining rings | Two 5/16-18 KEPS hex nuts | Two J-bolts | Wall mount bracket
Packaging quantity 1
Packaging Type Flat packed
Weight, net 2.268 kg | 5 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
