810010527/DB | R-002-IC-8H-F35IV/RNB

Base Product: O-DF

Available in:
Asia
Australia/New Zealand
EMEA
Latin America
North America

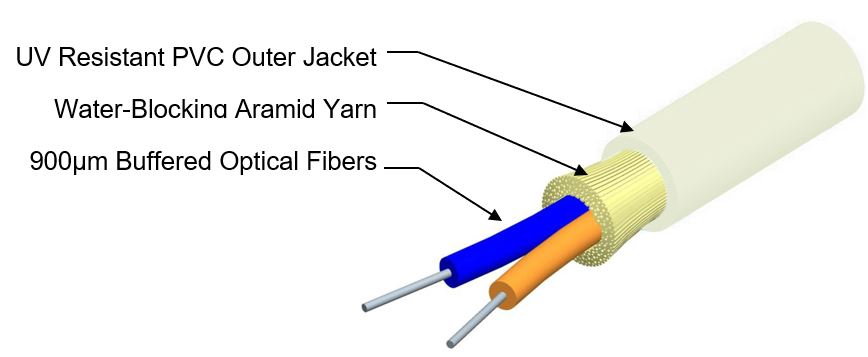

Indoor/Outdoor Riser 3.5mm Interconnect, dielectric, with 900um Buffers, 2-fiber, Singlemode G.657.B3,Gel-free, Feet jacket marking, Ivory jacket color

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Specifications

Product classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	Fiber drop cable

General Specifications

Cable Type	Drop
Construction Type	Non-armored
Subunit Type	Gel-free
Jacket Color	Ivory
Jacket Marking	Feet
Total Fiber Count	2

Dimensions

Diameter Over Jacket

3.5 mm | 0.138 in

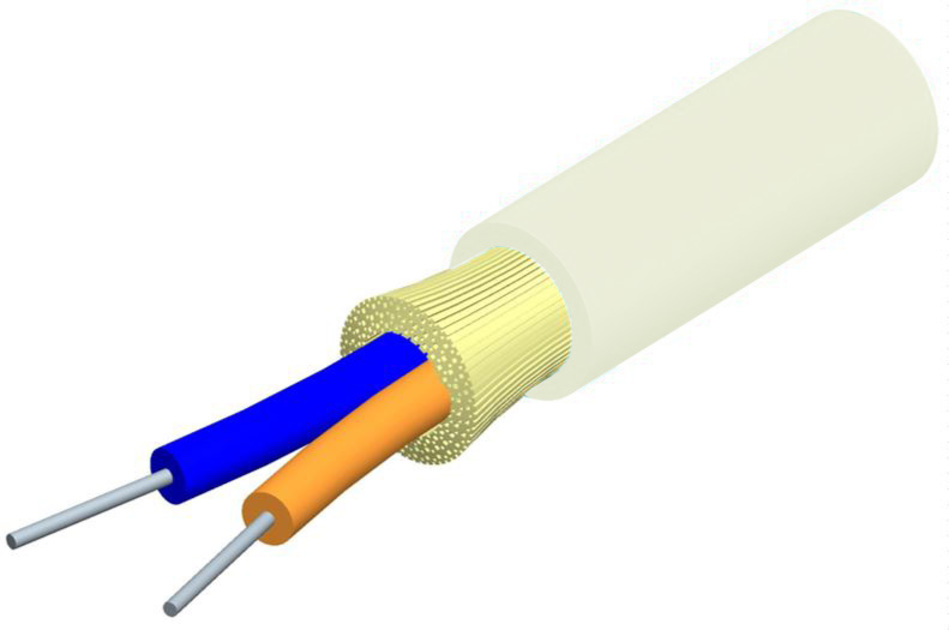

Representative Image

Click on image to enlarge.

Material Specifications

Jacket Material

PVC

Mechanical Specifications

Minimum Bend Radius, loaded	4 mm \| 0.157 in
Minimum Bend Radius, unloaded	4 mm \| 0.157 in
Tensile Load, long term, maximum	93 N \| 20.907 lbf
Tensile Load, short term, maximum	311 N \| 69.916 lbf
Compression	3.5 N/mm \| 19.986 lbf/in
Compression Test Method	FOTP-41 \| IEC 60794-1 E3
Flex	300 cycles
Flex Test Method	FOTP-104 \| IEC 60794-1 E6
Impact	0.74 N-m \| 6.55 in lb
Impact Test Method	FOTP-25 \| IEC 60794-1 E4
Strain	See long and short term tensile loads
Strain Test Method	FOTP-33 \| IEC 60794-1 E1
Twist	10 cycles
Twist Test Method	FOTP-85 \| IEC 60794-1 E7
Vertical Rise, maximum	500 m \| 1640.42 ft

Optical Specifications

Fiber Type

G.657.B3

Environmental Specifications

Installation temperature	-5 °C to +60 °C (+23 °F to +140 °F)
Operating Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Storage Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Cable Qualification Standards	ANSI/ICEA S-83-596
Environmental Space	Drop \| Indoor/Outdoor \| Riser \| Sunlight resistant
Flame Test Listing	NEC OFNR (ETL) and c(ETL) \| UL 1666
Flame Test Method	FT4 \| UL 1666
Jacket UV Resistance	UV stabilized
Water Penetration	24 h
Water Penetration Test Method	FOTP-82 \| IEC 60794-1 F5

Environmental Test Specifications

Low High Bend	0 °C to +60 °C (+32 °F to +140 °F)
Low High Bend Test Method	FOTP-37 \| IEC 60794-1 E11
Temperature Cycle	-40 °C to +70 °C (-40 °F to +158 °F)
Temperature Cycle Test Method	FOTP-3 \| IEC 60794-1 F1

Packaging and Weights

Cable weight	12.54 kg/km \| 8.426 lb/kft
Packaging Type	Reel in box
