760252157 | O-012-N3-8M-M12BK/20G/GRP/PE/PA/PE

Base Product: O-N3

Available in:
Australia/New Zealand

Fiber OSP cable, Double Jacket, flat GRP, SLT, 12 fiber, Singlemode G.652.D, Gel-filled, Meters jacket marking, Black jacket color

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Specifications

Product classification

Regional Availability	Australia/New Zealand
Product Type	Fiber OSP cable
Product Series	O-LN

Optical Specifications, Wavelength Specifications

Attenuation, maximum	0.21 dB/km @ 1,550 nm \| 0.35 dB/km @ 1,310 nm
Standards Compliance	ITU-T G.652.D

General Specifications

Armor Type	Non-metallic rods
Cable Type	Loose tube
Construction Type	Armored
Subunit Type	Gel-filled
Jacket Color	Black
Jacket Marking	Meters
Subunit, quantity	1
Filler, quantity	5
Total Fiber Count	12

Dimensions

Buffer Tube/Subunit Diameter	2.1 mm \| 0.083 in
Diameter Over Jacket	13.8 mm \| 0.543 in

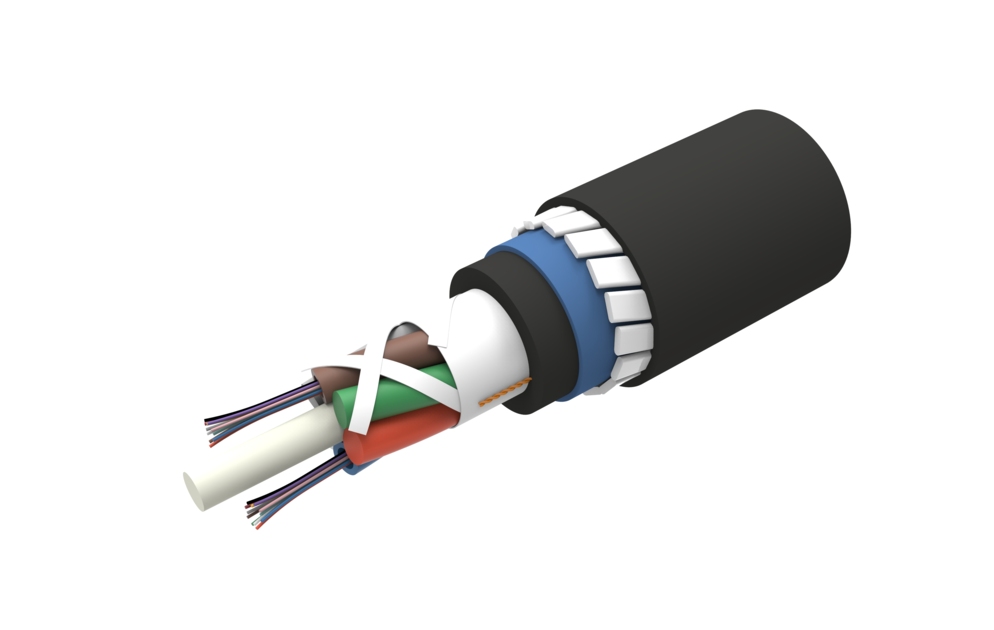

Representative Image

Click on image to enlarge.

Material Specifications

Jacket Material	Nylon
Inner Jacket Material	PE

Mechanical Specifications

Minimum Bend Radius, loaded	400 mm \| 15.748 in
Minimum Bend Radius, unloaded	200 mm \| 7.874 in
Tensile Load, long term, maximum	4000 N \| 899.236 lbf
Cable Crush Resistance, maximum	40 N/mm \| 228.406 lbf/in
Compression Test Method	IEC 60794-1-21 E3
Flex	25 cycles
Impact	20 N-m \| 177.015 in lb
Impact Test Method	IEC 60794-1 E4
Twist	10 cycles
Twist Test Method	IEC 60794-1-21 E7

Optical Specifications

Fiber Type

G.652.D | OS2

Environmental Specifications

Installation temperature	0 °C to +50 °C (+32 °F to +122 °F)
Operating Temperature	-20 °C to +70 °C (-4 °F to +158 °F)
Storage Temperature	-20 °C to +70 °C (-4 °F to +158 °F)
Environmental Space	Outdoor \| Outdoor, buried \| UV resistant for outdoor
Jacket UV Resistance	UV stabilized
Water Penetration	24 h
Water Penetration Test Method	IEC 60794-1 F5C

Environmental Test Specifications

Low High Bend Test Method	IEC 60794-1-21 E11
Temperature Cycle Test Method	IEC 60794-1-22 F1

Packaging and Weights

Cable weight

165 kg/km | 110.875 lb/kft

Regulatory Compliance/Certifications

Agency	Classification
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS	Compliant
UK-ROHS	Compliant
