2291216-YL | KJ610-YL

Base Product: 2291216

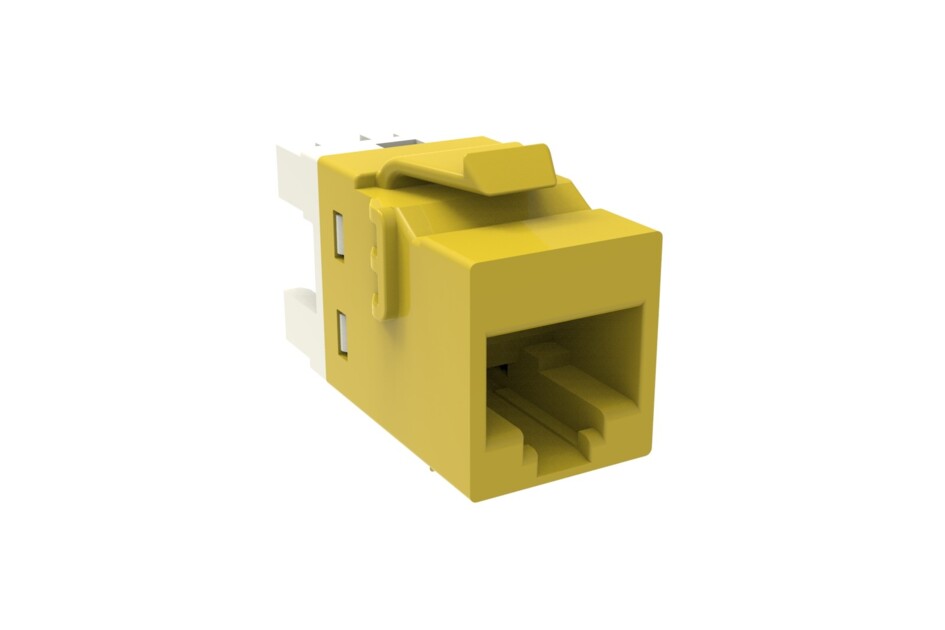

KJ-Series Modular Jack, RJ45, Cat6 Unshielded, Yellow

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Specifications

Product classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America
Portfolio	NETCONNECT®
Product Type	Modular jack
Product Series	KJ Series

ANSI/TIA Category	6
Cable Type	Unshielded
Color	Yellow
Conductor Type	Solid \| Stranded
Integrated Dust Cover Type	None
Mounting	Hubbell® faceplates \| Leviton® faceplates \| Panduit® faceplates
Outlet Type	Keystone
Termination Punchdowns, minimum	20 times
Termination Tool	110 Punchdown tool \| JTT Termination tool
Termination Type	IDC
Transmission Standards	ANSI/TIA-568-C.2 \| ISO/IEC 11801 Class E
Wiring	T568A \| T568B

Panel Cutout, recommended	14.79 x 19.31 mm (0.58 x 0.76 in)
Panel Thickness, recommended	1.6 mm \| 0.063 in
Height	16.13 mm \| 0.635 in
Width	16.48 mm \| 0.649 in
Depth	30.48 mm \| 1.2 in
Compatible Cable Diameter, maximum	5.8 mm \| 0.228 in
Compatible Insulated Conductor Diameter, maximum	1.27 mm \| 0.05 in
Contact Plating Thickness	1.27 µm
Compatible Conductor Gauge, solid	24–22 AWG
Compatible Conductor Gauge, stranded	26–24 AWG

Contact Resistance Variation, maximum	20 mOhm
Contact Resistance, maximum	100 mOhm
Current Rating at Temperature	1.5 A @ 20 °C \| 1.5 A @ 68 °F
Dielectric Withstand Voltage, RMS, contact-to-contact	1,000 Vac @ 60 Hz
Insulation Resistance, minimum	500 MOhm
Remote Powering	Fully supports the safe delivery of power over LAN cabling described by IEEE 802.3bt (Type 4) and complies with the unmating under electrical load requirements prescribed by IEC 60512-99-002
PoE Durability	Supports IEEE 802.3bt Type 4 (90 W) applications greater than 3000 plug to jack mating cycles

Plug to Jack Mating Cycles

Complies to IEC 60603-7 series

Flammability Rating

UL 94 V-0

Packaging quantity	1
Packaging Type	Bag

Agency	Classification
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS	Compliant
UK-ROHS	Compliant
