760017574 | M30FP-3RCA-110-270
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

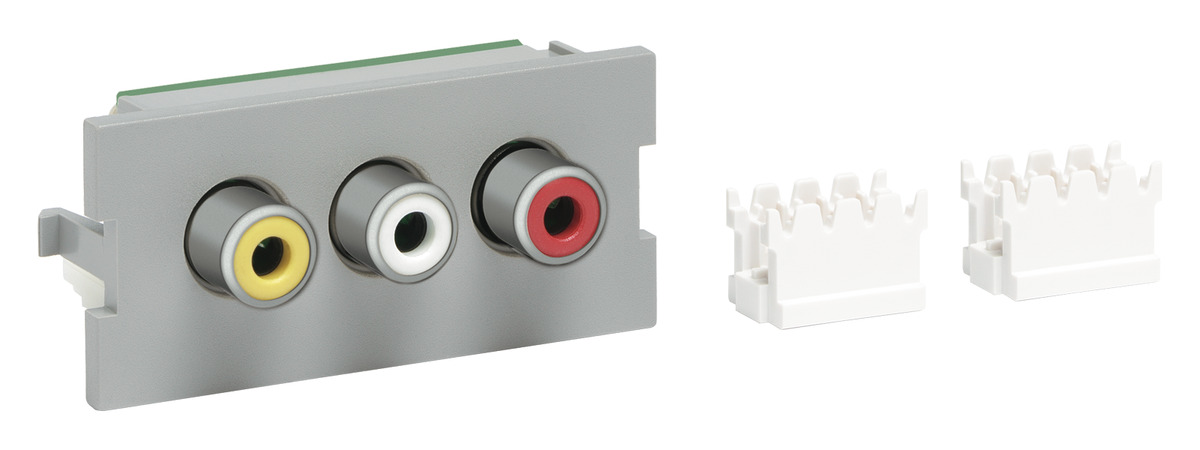

3 Port RCA Adapter, gray
Specifications
Specifications
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Mutlimedia adapter faceplate |
General Specifications
| Application | Used with M Series modular information outlet,and various types of adapters snap into it |
| Color | Gray |
| Mounting | Flush |
| Total Ports, quantity | 3 |
Dimensions
| Height | 25.4 mm | 1 in |
| Width | 25.4 mm | 1 in |
| Depth | 50.8 mm | 2 in |
Material Specifications
| Material Type | High-impact, flame retardant, thermoplastic |
Environmental Specifications
| Flammability Rating | UL 94 V-0 |
| Safety Standard | UL | cUL |
Packaging and Weights
| Packaging quantity | 1 |
| Weight, net | 0.032 kg | 0.07 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Mutlimedia adapter faceplate |
General Specifications
| Application | Used with M Series modular information outlet,and various types of adapters snap into it |
| Color | Gray |
| Mounting | Flush |
| Total Ports, quantity | 3 |
Dimensions
| Height | 25.4 mm | 1 in |
| Width | 25.4 mm | 1 in |
| Depth | 50.8 mm | 2 in |
Material Specifications
| Material Type | High-impact, flame retardant, thermoplastic |
Environmental Specifications
| Flammability Rating | UL 94 V-0 |
| Safety Standard | UL | cUL |
Packaging and Weights
| Packaging quantity | 1 |
| Weight, net | 0.032 kg | 0.07 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
