760249251 | FPS-BS-2P-W

  • Available in:
  • Asia
  • Middle East/Africa

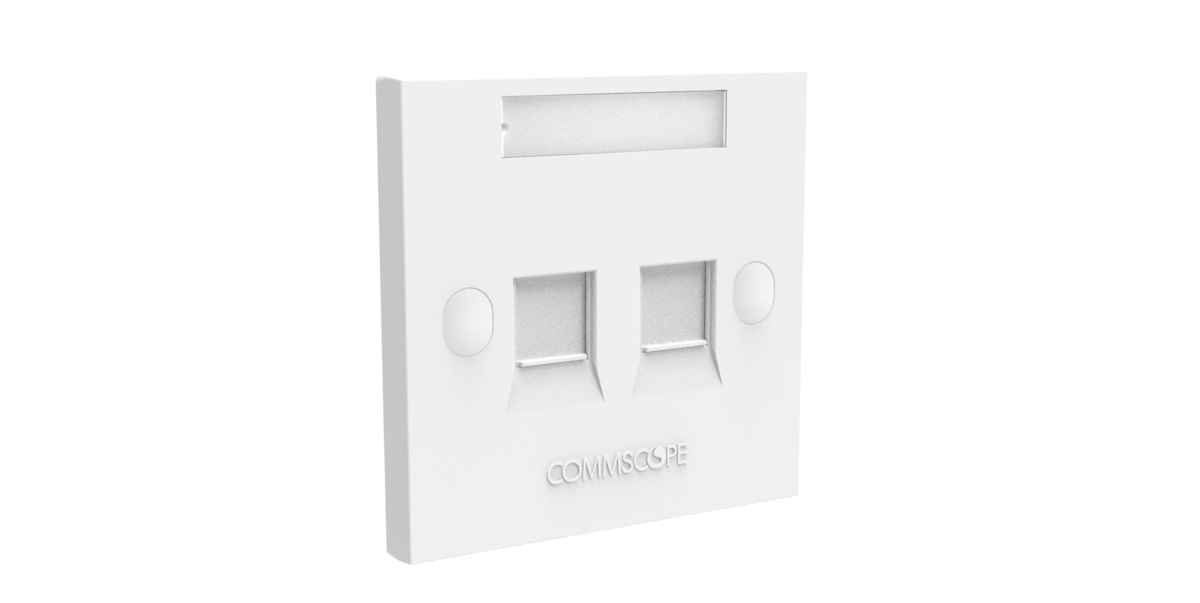

Faceplate Kit, universal, two ports, British Standard style, shuttered, white

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download

Product Classification

Regional Availability Asia | Middle East/Africa
Portfolio CommScope®
Product Type Faceplate kit
Product Series FPS-BS

General Specifications

Application Used with KJ Series outlets with adapter | Used with M Series modular information outlet | Used with SL Series outlets
Color Pro white
Integrated Dust Cover Type Sliding
Mounting Flush
Outlet Orientation Flat
Port Marking Type Label
Total Ports, quantity 2

Dimensions

Height 85.979 mm | 3.385 in
Width 85.979 mm | 3.385 in
Depth 8.001 mm | 0.315 in

Material Specifications

Material Type High-impact, flame retardant, thermoplastic, UL listed material

Environmental Specifications

Flammability Rating UL 94 V-0
Safety Standard UL | cUL

Packaging and Weights

Packaging quantity 1
Packaging Type Bag
Weight, net 0.036 kg | 0.08 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant

Product Classification

Regional Availability Asia | Middle East/Africa
Portfolio CommScope®
Product Type Faceplate kit
Product Series FPS-BS

General Specifications

Application Used with KJ Series outlets with adapter | Used with M Series modular information outlet | Used with SL Series outlets
Color Pro white
Integrated Dust Cover Type Sliding
Mounting Flush
Outlet Orientation Flat
Port Marking Type Label
Total Ports, quantity 2

Dimensions

Height 85.979 mm | 3.385 in
Width 85.979 mm | 3.385 in
Depth 8.001 mm | 0.315 in

Material Specifications

Material Type High-impact, flame retardant, thermoplastic, UL listed material

Environmental Specifications

Flammability Rating UL 94 V-0
Safety Standard UL | cUL

Packaging and Weights

Packaging quantity 1
Packaging Type Bag
Weight, net 0.036 kg | 0.08 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
