HFTP-AM
Base Product
- Available in:
- EMEA
- North America

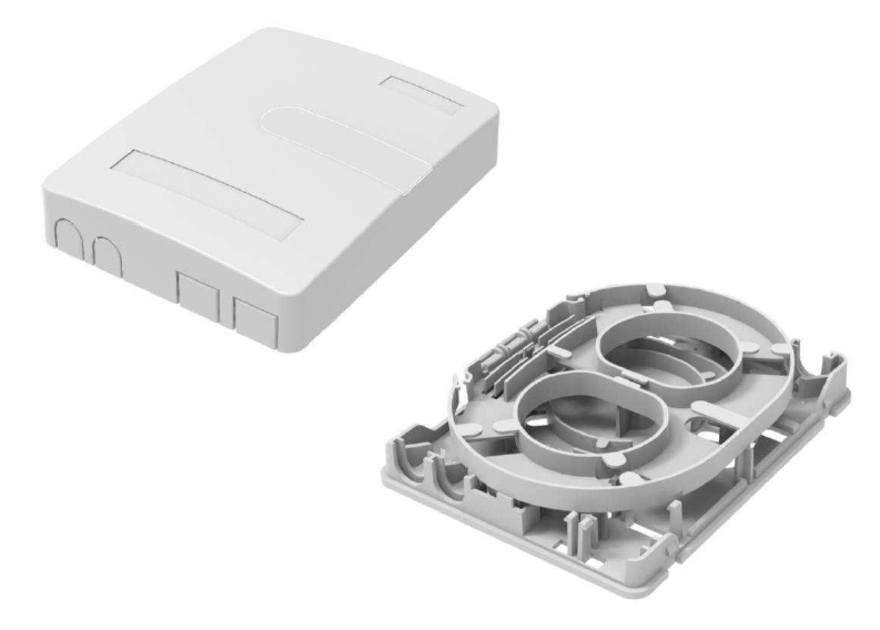

HFTP-AM Customer premises fiber wall outlet
Configure Product Variants
Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.
Features and Benefits
The HFTP-AM wall outlet is a point of termination of the optical connection cable in a residential environment.In its tray it allows to accommodate two or four fusion splices and store their corresponding fibers. The wall plug has two lower entrances, one upper and two rear for the connection cable. The HFTP-AM includes the feature to be mounted on a standard electrical backbox.
The wall plug can be supplied without a cord or connector to be used as a transition box for an external or internal connection cable. Made of self-extinguishing ABS UL V-0 and stainless-steel screw.
Features and Benefits
Includes
Features not included
The wall plug can be supplied without a cord or connector to be used as a transition box for an external or internal connection cable. Made of self-extinguishing ABS UL V-0 and stainless-steel screw.
Features and Benefits
- Compact design (105x85x25mm)
- 5 cable ports (3-7mm), 2 at the bottom left, 1 top right, 1 upper right/back and 1 Center back
- Housing up to 2 fusion splices for the HFTP-AM-S versions, 4 Fusion splices for the HFTP-AM-L versions
- SC Adapter(s) with shutter and laser warning logo on the applicable MID’s
- LC Duplex Adapters with inner shutters
- Splicing to factory installed pigtails if applicable
- Includes the feature for mounting onto a standard electrical backbox
- Possibility to splice cable to cable
- Small lid to hide the screw preventing re-entering
Includes
- 4x tie-wraps (2mmx80mm)
- Foam band (80mmx15mm)
- 2x wall screws (5mm) and 2x wall plugs (5mm) (wall installment)
- 3 grommets (3-7mm)
- Pre-installed Stainless-steel screw
- Small lid,
- 1 Pigtail/Adapter on the applicable MID’s
- Installation instruction
Features not included
- Option for customized In-Mold Labeling (IML) as customer logo
- Option for engraving as QR code
Specifications
Product classification
| Regional Availability | EMEA | North America |
| Product Type | Fiber wall outlet |
| Product Series | HFTP |
General Specifications
| Cover Type | Screw-on |
| Mounting | Wall mount |
Ordering Tree
| Click on image to enlarge. |
Material Specifications
| Material Type | LSZH thermoplastic |
Environmental Specifications
| Storage Temperature | -30 ºC to +60 ºC (-22 ºF to +140 ºF) |
| Relative Humidity | Up to 93%, non-condensing |
| Environmental Space | Indoor |
Packaging and Weights
| Packaging quantity | 10 |
| Packaging Type | Bag |
Product classification
| Regional Availability | EMEA | North America |
| Product Type | Fiber wall outlet |
| Product Series | HFTP |
General Specifications
| Cover Type | Screw-on |
| Mounting | Wall mount |
Ordering Tree
| Click on image to enlarge. |
Material Specifications
| Material Type | LSZH thermoplastic |
Environmental Specifications
| Storage Temperature | -30 ºC to +60 ºC (-22 ºF to +140 ºF) |
| Relative Humidity | Up to 93%, non-condensing |
| Environmental Space | Indoor |
Packaging and Weights
| Packaging quantity | 10 |
| Packaging Type | Bag |
