Aurora Networks™ (ANS) and RUCKUS® Networks are now Vistance™ Networks
Visit their new site for all products and content
65401684-03 | 6540 1 684-03
- Available in:
- Australia/New Zealand
- EMEA

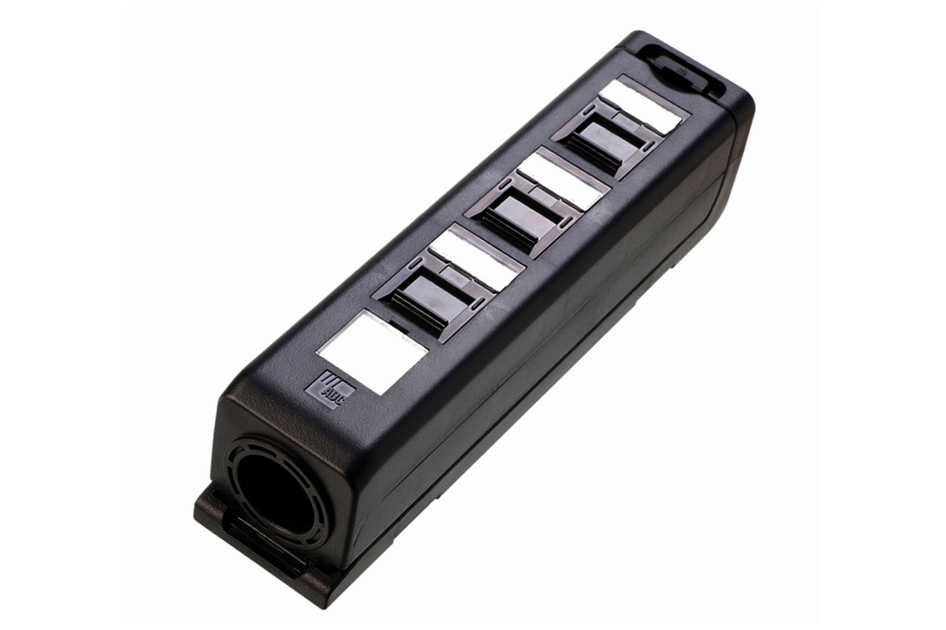

MiniPod, category 6, 3 port, preloaded, unshielded UTP
Specifications
Features and Benefits
- Improved speed of redeployment in the workplace through rapid mechanism
- Simplified cabling of raised floor spaces and ideal for high density environments
- Ideal to be terminated at an early stage in the building works
- Designed for use with all standard flexible conduit systems
Specifications
Product classification
| Regional Availability | Australia/New Zealand | EMEA |
| Portfolio | NETCONNECT® |
| Product Type | Modular jack enclosure |
| Product Series | MiniPod |
General Specifications
| ANSI/TIA Category | 6 |
| Color | Black |
| Integrated Dust Cover Type | Sliding |
| Mounting | Surface |
| Outlet Orientation | Flat |
| Total Ports, quantity | 3 |
Dimensions
| Height | 47 mm | 1.85 in |
| Width | 185 mm | 7.283 in |
| Depth | 50 mm | 1.969 in |
Material Specifications
| Material Type | Acrylonitrile butadiene styrene (ABS) |
Environmental Specifications
| Flammability Rating | UL 94 V-0 |
Packaging and Weights
| Packaging quantity | 1 |
| Packaging Type | Bag | Carton |
Regulatory Compliance/Certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
Product classification
| Regional Availability | Australia/New Zealand | EMEA |
| Portfolio | NETCONNECT® |
| Product Type | Modular jack enclosure |
| Product Series | MiniPod |
General Specifications
| ANSI/TIA Category | 6 |
| Color | Black |
| Integrated Dust Cover Type | Sliding |
| Mounting | Surface |
| Outlet Orientation | Flat |
| Total Ports, quantity | 3 |
Dimensions
| Height | 47 mm | 1.85 in |
| Width | 185 mm | 7.283 in |
| Depth | 50 mm | 1.969 in |
Material Specifications
| Material Type | Acrylonitrile butadiene styrene (ABS) |
Environmental Specifications
| Flammability Rating | UL 94 V-0 |
Packaging and Weights
| Packaging quantity | 1 |
| Packaging Type | Bag | Carton |
Regulatory Compliance/Certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
Documentation & Downloads
Building Information Modeling (BIM) Objects
Installation Instruction
Product Specification
Visio Stencil
Building Information Modeling (BIM) Objects
Installation Instruction
Product Compliance Documentation
Product Specification
Visio Stencil
