760080820 | MIB-2
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

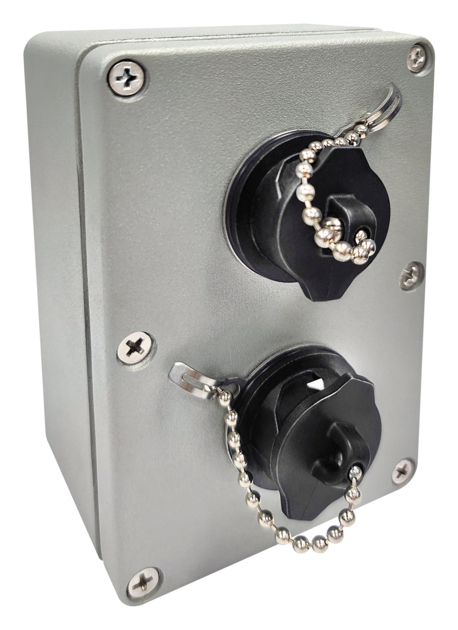

2 Port Industrial Box
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Surface mount box |
General Specifications
| ANSI/TIA Category | 5e | 6 | 6A |
| Application | Provides sealed copper connectivity |
| Color | Gray |
| Mounting | Surface |
| Total Ports, quantity | 1 |
Dimensions
| Height | 119.38 mm | 4.7 in |
| Width | 78.74 mm | 3.1 in |
| Depth | 82.55 mm | 3.25 in |
| Plug Diameter | 29.21 mm | 1.15 in |
| Receptacle Opening | 27.94 mm | 1.1 in |
Material Specifications
| Material Type | Aluminum |
Environmental Specifications
| Operating Temperature | -25 °C to +85 °C (-13 °F to +185 °F) |
| Flammability Rating | UL 94 V-0 |
| Qualification Standards | IEC 60529, IP65 |
| Safety Standard | UL | cUL |
Packaging and Weights
| Packaging quantity | 1 |
| Weight, net | 0.544 kg | 1.2 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Surface mount box |
General Specifications
| ANSI/TIA Category | 5e | 6 | 6A |
| Application | Provides sealed copper connectivity |
| Color | Gray |
| Mounting | Surface |
| Total Ports, quantity | 1 |
Dimensions
| Height | 119.38 mm | 4.7 in |
| Width | 78.74 mm | 3.1 in |
| Depth | 82.55 mm | 3.25 in |
| Plug Diameter | 29.21 mm | 1.15 in |
| Receptacle Opening | 27.94 mm | 1.1 in |
Material Specifications
| Material Type | Aluminum |
Environmental Specifications
| Operating Temperature | -25 °C to +85 °C (-13 °F to +185 °F) |
| Flammability Rating | UL 94 V-0 |
| Qualification Standards | IEC 60529, IP65 |
| Safety Standard | UL | cUL |
Packaging and Weights
| Packaging quantity | 1 |
| Weight, net | 0.544 kg | 1.2 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
