760246284 | OUT-OUT-FP

  • Available in:
  • Asia
  • EMEA
  • Latin America
  • North America

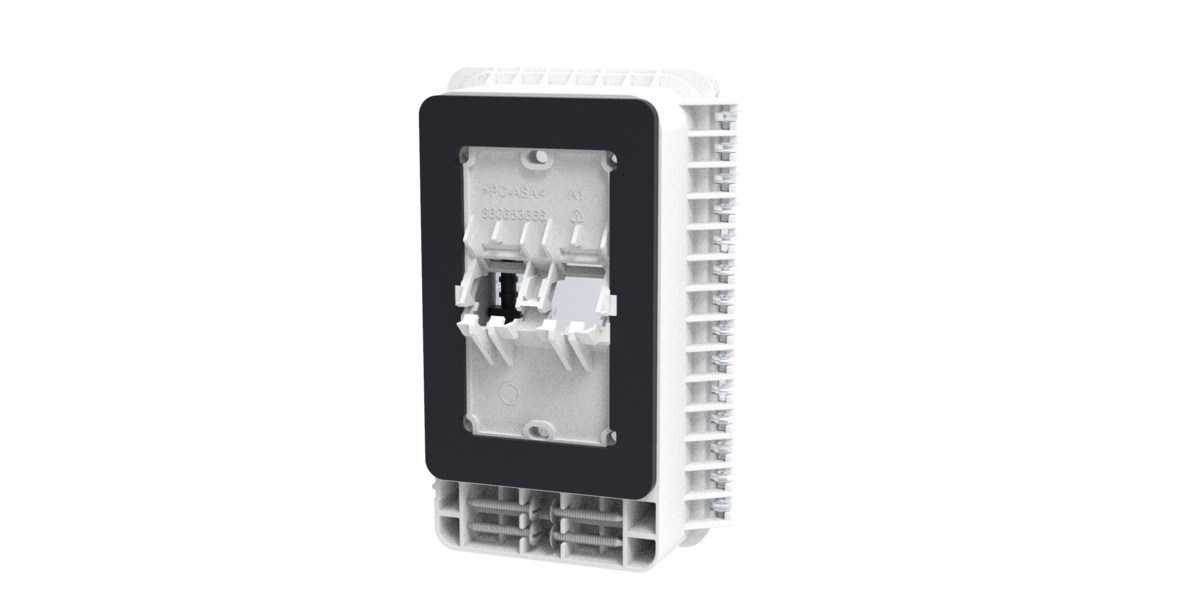

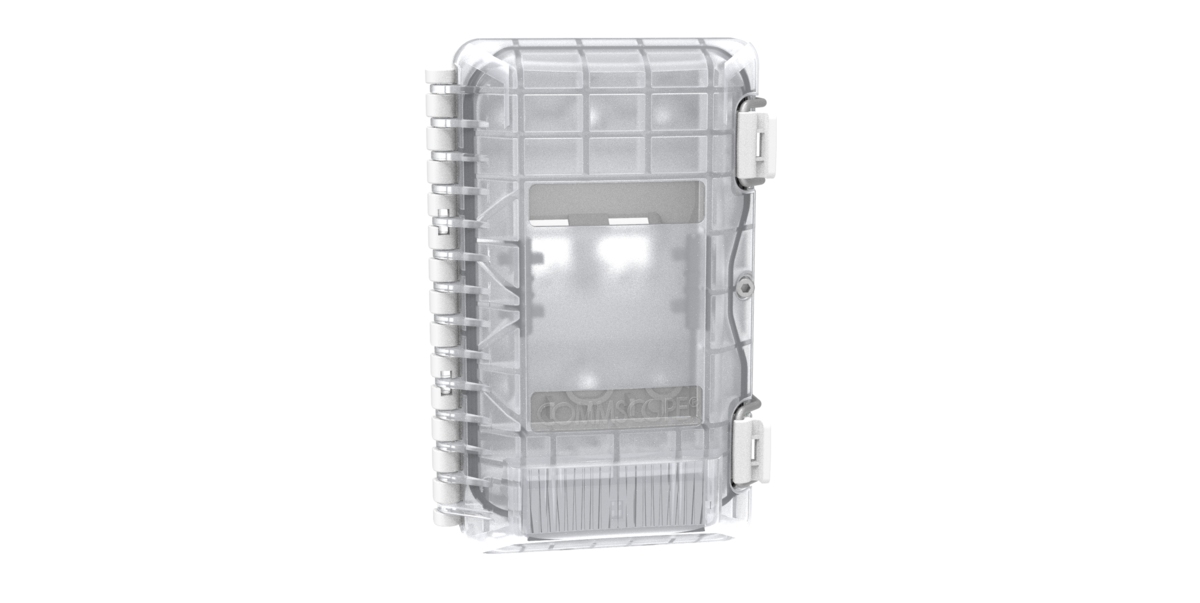

Outdoor Outlet Cover, single gang, universal, two ports

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download

Product classification

Regional Availability Asia | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Box

General Specifications

Application Used with KJ Series outlets with adapter | Used with M Series modular information outlet | Used with SL Series outlets
Color Clear
Outlet Orientation Angled
Port Marking Type Label
Total Ports, quantity 2

Dimensions

Height 150 mm | 5.906 in
Width 95.6 mm | 3.764 in
Depth 55 mm | 2.165 in

Material Specifications

Material Type Flame/UV-resistant plastic for enclosure and cover

Environmental Specifications

Operating Temperature -40 °C to +60 °C (-40 °F to +140 °F)
Environmental Space Indoor/Outdoor
Qualification Standards IEC 60529, IP67

Packaging and Weights

Packaging quantity 1
Packaging Type Box
Weight, net 0.28 kg | 0.617 lb

Regulatory Compliance/Certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS Compliant
UK-ROHS Compliant
