This product was discontinued

For other alternatives, please contact us for more information.

0 Replacement products available

CZ0630-000 | CB-S1B1

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

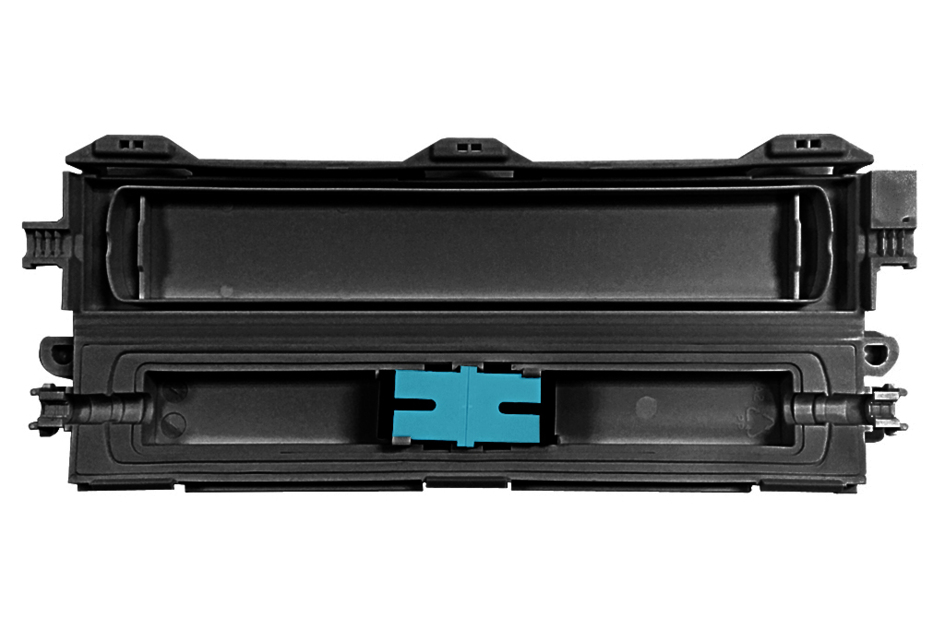

Fiber Optic Connector box, outdoor, black, one SC/UPC adapter

Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • designed for pre-terminated connectors or FIC in outdoor drop cable application
  • accommodates industry standard SC adaptors in outdoor aerial ,wall-mounted or pole installation
  • used for emergency repairs and maintenance, or urgent service turn-up requests
  • supports figure-8 and 3mm drop cable, with option of 4.5mm-5mm outdoor drop cables

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Product Type Fiber adapter enclosure
Product Series CB

General Specifications

Adapters, quantity 1
Cable Sealing Type Gel filled
Enclosure Color Black
Lock Type Hinged with latches
Mounting Wall
Port Color Blue

Dimensions

Height 15 mm | 0.591 in
Width 169 mm | 6.654 in
Depth 33 mm | 1.299 in

Dimension Drawing

Click on image to enlarge.

Material Specifications

Material Type Polypropylene plastic

Optical Specifications

Fiber Mode Singlemode

Environmental Specifications

Operating Temperature -40 ºC to +65 ºC (-40 ºF to +149 ºF)
Environmental Space Outdoor
Qualification Standards IEC 60529, IP54
UV Resistance UV stabilized

Packaging and Weights

Packaging quantity 1
Packaging Type Box | Carton

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Product Type Fiber adapter enclosure
Product Series CB

General Specifications

Adapters, quantity 1
Cable Sealing Type Gel filled
Enclosure Color Black
Lock Type Hinged with latches
Mounting Wall
Port Color Blue

Dimensions

Height 15 mm | 0.591 in
Width 169 mm | 6.654 in
Depth 33 mm | 1.299 in

Material Specifications

Material Type Polypropylene plastic

Optical Specifications

Fiber Mode Singlemode

Environmental Specifications

Operating Temperature -40 ºC to +65 ºC (-40 ºF to +149 ºF)
Environmental Space Outdoor
Qualification Standards IEC 60529, IP54
UV Resistance UV stabilized

Packaging and Weights

Packaging quantity 1
Packaging Type Box | Carton
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
