760252854 | CPCE-1
- Available in:
- North America

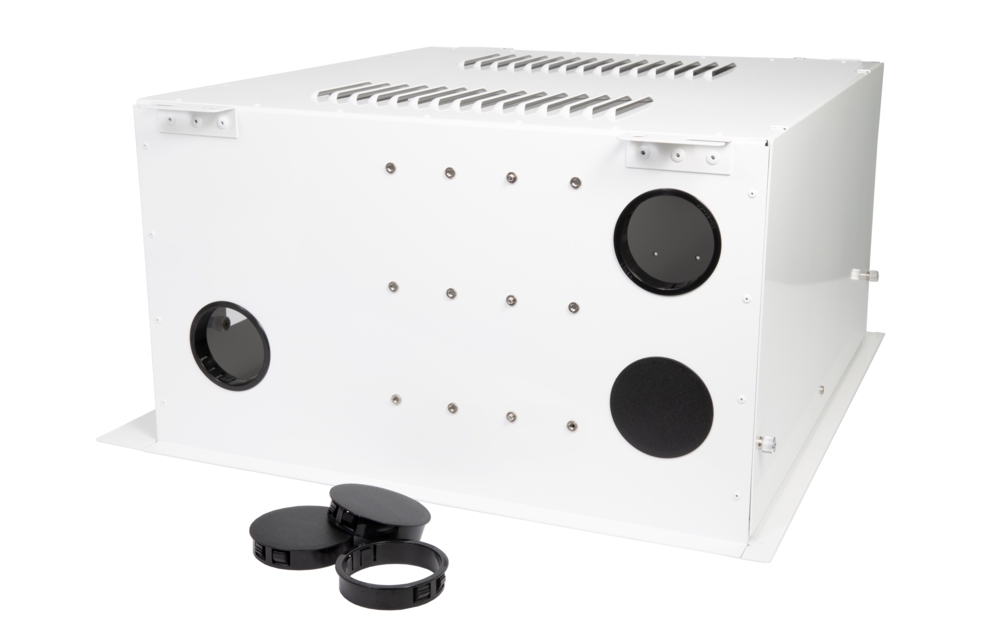

Constellation™ Enclosure, secure equipment enclosure providing 5RU of 19 inch rack space as well as 0RU accommodations for Propel and G2 modules.
Specifications
Product classification
| Regional Availability | North America |
| Portfolio | SYSTIMAX® |
| Product Type | Enclosure |
| Product Brand | Constellation™ |
General Specifications
| Color | Putty white |
| Mounting | Ceiling | Rod |
Dimensions
| Height | 327.7 mm | 12.902 in |
| Width | 604.5 mm | 23.799 in |
| Depth | 604.5 mm | 23.799 in |
| Length | 604.5 m | 1983.268 ft |
Material Specifications
| Material Type | Aluminum |
Environmental Specifications
| Operating Temperature | -20 °C to +50 °C (-4 °F to +122 °F) |
| Storage Temperature | -20 °C to +70 °C (-4 °F to +158 °F) |
| Relative Humidity | 5%–95%, non-condensing |
| Environmental Space | Indoor |
| Safety Standard | IEC 62368-1 |
Packaging and Weights
| Packaging quantity | 1 |
Regulatory Compliance/Certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
Product classification
| Regional Availability | North America |
| Portfolio | SYSTIMAX® |
| Product Type | Enclosure |
| Product Brand | Constellation™ |
General Specifications
| Color | Putty white |
| Mounting | Ceiling | Rod |
Dimensions
| Height | 327.7 mm | 12.902 in |
| Width | 604.5 mm | 23.799 in |
| Depth | 604.5 mm | 23.799 in |
| Length | 604.5 m | 1983.268 ft |
Material Specifications
| Material Type | Aluminum |
Environmental Specifications
| Operating Temperature | -20 °C to +50 °C (-4 °F to +122 °F) |
| Storage Temperature | -20 °C to +70 °C (-4 °F to +158 °F) |
| Relative Humidity | 5%–95%, non-condensing |
| Environmental Space | Indoor |
| Safety Standard | IEC 62368-1 |
Packaging and Weights
| Packaging quantity | 1 |
Regulatory Compliance/Certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
