Base Product: FGS-MSHS

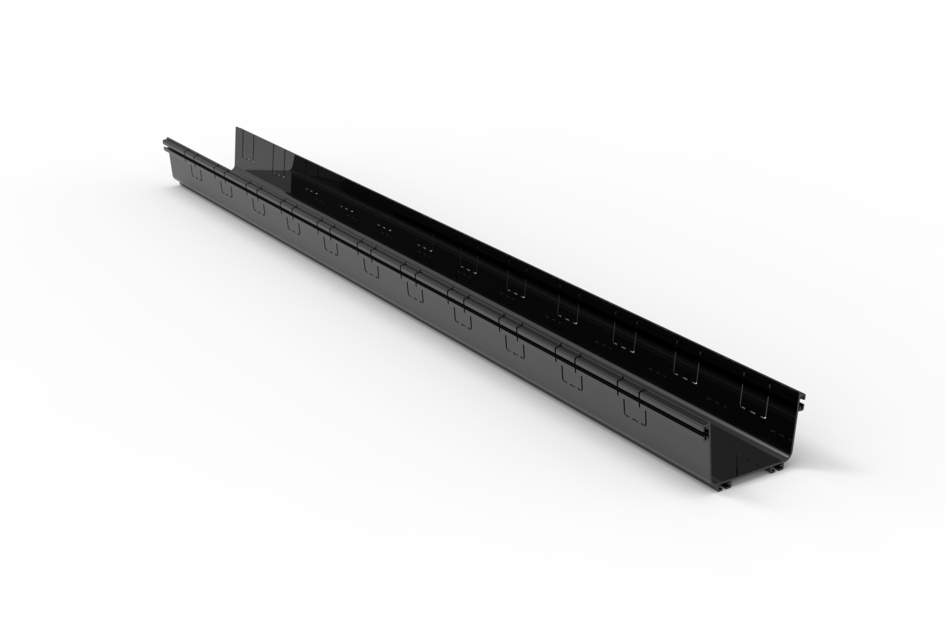

FiberGuide® Horizontal Straight Section with Pre-Cut 6in Spacing and 2.25in Opening, 4x6 in, Black
A configuration tool that allows users to import layouts, design 3D raceways and export detailed drawings and BOMs.
Get access
Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
Portfolio | CommScope® |
Product Type | Straight section |
Product Brand | FiberGuide® |
Product Series | FGS |
Color | Black |
Orientation | Horizontal |
Section Type | Straight section |
Height | 101.6 mm | 4.000 in |
Width | 152.4 mm | 6.000 in |
Length | 1829 mm | 72.008 in |
System Dimensions | 102 mm x 152 mm (4 in x 6 in) |
Material Type | Engineering Thermoplastic |
Flammability Rating | CSA S143 | UL 2024 | UL 94 V-0 |
Halogen Characteristics | Blue Angel | TCO '99 | WEEE |
Safety Standard | CSA | UL |
Weight, net | 3.507 kg | 7.732 lb |
Agency | Classification |
ROHS | Compliant |
CHINA-ROHS
![]() |
Below maximum concentration value |
REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
UK-ROHS | Compliant |
