NGF-SPLTR-MODULES

Base Product

Available in:
Asia
Australia/New Zealand
EMEA
Latin America
North America

Next Generation Frame (NGF) Modular Splitter Modules for FTTx applications

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants

Configure and display product variants of NGF-SPLTR-MODULES by selecting options

Product	Regional Availability	Government Requirements	Product Type	Product Series	Distribution Type	Interface, Input	Interface, Output	Split Ratio	Splitter, quantity
FPS-MPP3AJJ Next Generation Frame (NGF) Modular Splitter Module, 1x32 splitter, SC/APC (front pgtl) to SC/APC Specifications	North America	Build America Buy America (BABA) compliant*	Splitter module	NGF	1 x 32 splitter	SC/APC	SC/APC	Symmetrical	1
FPS-MPP3ANN Next Generation Frame (NGF) Modular Splitter Module, 1x32 splitter, SC/UPC (front pgtl) to SC/UPC Specifications	North America	Build America Buy America (BABA) compliant*	Splitter module	NGF	1 x 32 splitter	SC/UPC	SC/UPC	Symmetrical	1
FPS-MPP3CJJ Next Generation Frame (NGF) Modular Splitter Module, 1x16 splitter, SC/APC (front pgtl) to SC/APC Specifications	North America	Build America Buy America (BABA) compliant*	Splitter module	NGF	1 x 16 splitter	SC/APC	SC/APC	Symmetrical	1
FPS-MPP3HJJ Next Generation Frame (NGF) Modular Splitter Module, 2x16 WDM, SC/APC Specifications	North America	Build America Buy America (BABA) compliant*	Splitter module	NGF	2 x 16 splitter	SC/APC	SC/APC	Symmetrical	1
FPS-MPP3LJJ Next Generation Frame (NGF) Modular Splitter Module, dual 1x8, SC/APC (front pgtl) input connect., SC/APC output connect. Specifications	North America	Build America Buy America (BABA) compliant*	Splitter module	NGF	1 x 8 splitter	SC/APC	SC/APC	Symmetrical	2
FPS-MPP3MJJ Next Generation Frame (NGF) Modular Splitter Module, dual 1x16, SC/APC (front pgtl) input connect., SC/APC output connect. Specifications	North America	Build America Buy America (BABA) compliant*	Splitter module	NGF	1 x 16 splitter	SC/APC	SC/APC	Symmetrical	2
FPS-MPP3WJJ Next Generation Frame (NGF) Modular Splitter Module, 1x2 splitter, SC/APC (front pgtl) to SC/APC Specifications	North America	Build America Buy America (BABA) compliant*	Splitter module	NGF	1 x 2 splitter	SC/APC	SC/APC	Symmetrical	1

Features and Benefits

The NGF Modular Splitter Block utilizes CommScope's splitter packaging technology and is used in CommScope’s Next Generation Frame (NGF) which has unmatched density for fiber management and signal distribution.

Features:

Designed for use with CommScope's High-Density NGF System
Modular design allows up to 48 32-way splitters into one 30" NGF Distribution Frame
NGF splitter block accepts 4 mini plug-and-play splitters

Specifications

Product classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	Splitter module
Product Series	NGF

General Specifications

Functionality	Splitting
Application	For use with NGF frames
Interface, Input	SC/APC \| SC/UPC
Interface, Output	SC/APC \| SC/UPC

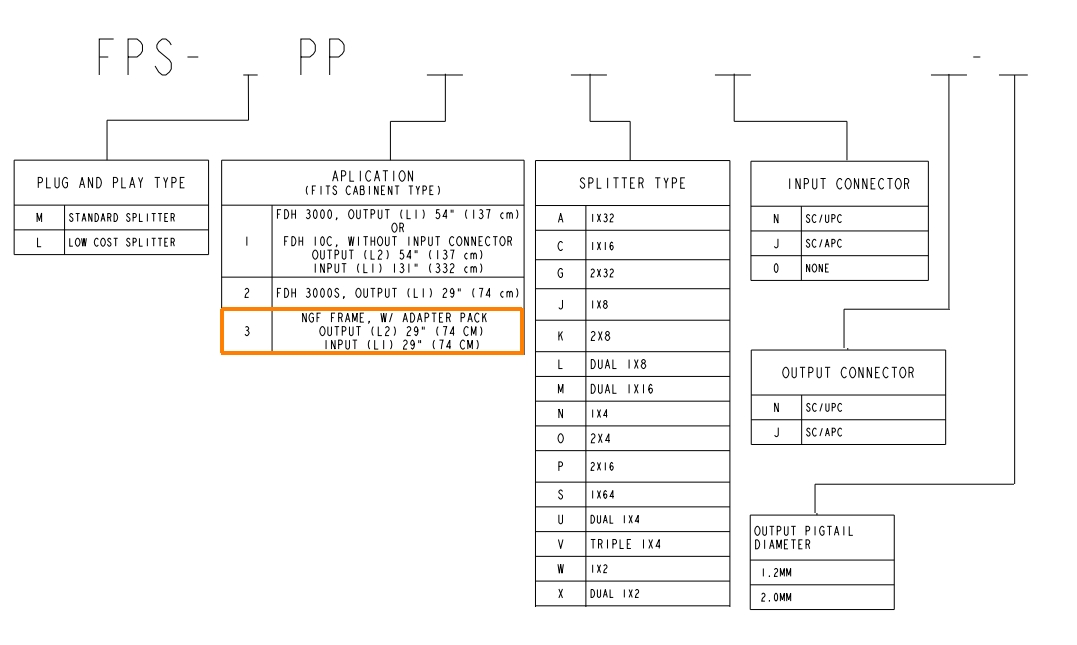

Ordering Tree

Click on image to enlarge.

Environmental Specifications

Environmental Space

Indoor

Packaging and Weights

Packaging quantity

Product classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	Splitter module
Product Series	NGF
