WMFE

Base Product

Available in:
EMEA

WMFE Fiber Optic Wall Mount Fiber Enclosure, indoor/outdoor

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants

Configure and display product variants of WMFE by selecting options

Product	Regional Availability	Portfolio	Product Series	Product Type	Functionality	Interface	Environmental Space
760252097 \| WMFE2-NN00-C-00 Wall Mountable Fiber Endclosure to be used with max 2 SC or LC(duplex) adapters, feeder cable can be stored up to 50m depending cable diameter, possibility to splice; cable cover included Specifications	EMEA	CommScope®	WMFE	Fiber wall box	Patching \| Splicing	Unloaded	Indoor/Outdoor
760253779 \| WMFE2-L242-N-00 Wall Mountable Fiber Endclosure including 2 LC/APC (duplex) adapters and 4 900µ pigtails, feeder cable can be stored up to 50m depending cable diameter, cable cover not included Specifications	EMEA	CommScope®	WMFE	Fiber wall box	Patching \| Splicing	LC/APC	Indoor/Outdoor
760253780 \| WMFE2-L221-N-00 Wall Mountable Fiber Endclosure including 1 LC/APC (duplex) adapter and 2 900µ pigtails, feeder cable can be stored up to 50m depending cable diameter, cable cover not included Specifications	EMEA	CommScope®	WMFE	Fiber wall box	Patching \| Splicing	LC/APC	Indoor/Outdoor
760253781 \| WMFE2-L202-N-00 Wall Mountable Fiber Endclosure including 2 LC/APC (duplex) adapters and no 900µ pigtails, feeder cable can be stored up to 50m depending cable diameter, cable cover not included Specifications	EMEA	CommScope®	WMFE	Fiber wall box	Patching \| Splicing	LC/APC	Indoor/Outdoor
760253782 \| WMFE2-L201-N-00 Wall Mountable Fiber Endclosure including 1 LC/APC (duplex) adapter and no 900µ pigtails, feeder cable can be stored up to 50m depending cable diameter, cable cover not included Specifications	EMEA	CommScope®	WMFE	Fiber wall box	Patching \| Splicing	LC/APC	Indoor/Outdoor
760253783 \| WMFE2-S222-N-00 Wall Mountable Fiber Endclosure including 2 SC/APC adapters and 2 900µ pigtails, feeder cable can be stored up to 50m depending cable diameter, cable cover not included Specifications	EMEA	CommScope®	WMFE	Fiber wall box	Patching \| Splicing	SC/APC	Indoor/Outdoor
760253784 \| WMFE2-S211-N-00 Wall Mountable Fiber Endclosure including 1 SC/APC adapter and 1 900µ pigtail, feeder cable can be stored up to 50m depending cable diameter, cable cover not included Specifications	EMEA	CommScope®	WMFE	Fiber wall box	Patching \| Splicing	SC/APC	Indoor/Outdoor
760253785 \| WMFE2-S202-N-00 Wall Mountable Fiber Endclosure including 2 SC/APC adapters and no 900µ pigtails, feeder cable can be stored up to 50m depending cable diameter, cable cover not included Specifications	EMEA	CommScope®	WMFE	Fiber wall box	Patching \| Splicing	SC/APC	Indoor/Outdoor

Features and Benefits

The WMFE FTTX is a wall mounted fibre management system for broadband network architecture that provides optical signals to the customer premises.

Features:

Compact and modular wall- mountable customer termination box
Fibre splices can be managed in single circuits using the fibre organising systems.
Cable coming into the enclosure is hidden by protective tubing which is secured to the external wall (not included)
Three fixing holes located on the box so it can be secured tightly to the external wall.

Specifications

Product Classification

Regional Availability	EMEA
Portfolio	CommScope®
Product Type	Fiber wall box
Product Series	WMFE

General Specifications

Functionality	Patching \| Splicing
Cable Entry Location	Bottom
Color	Light Gray (RAL 7035)
Interface	LC/APC \| SC/APC \| Unloaded
Mounting	Wall mount
Patch Cord Routing	Downward
Patching Capacity, maximum	4
Port Capacity, maximum	4
Splicing Type	SMOUV

Dimensions

Height	196 mm \| 7.717 in
Height, with cover	281 mm \| 11.063 in
Width	154 mm \| 6.063 in
Depth	43 mm \| 1.693 in

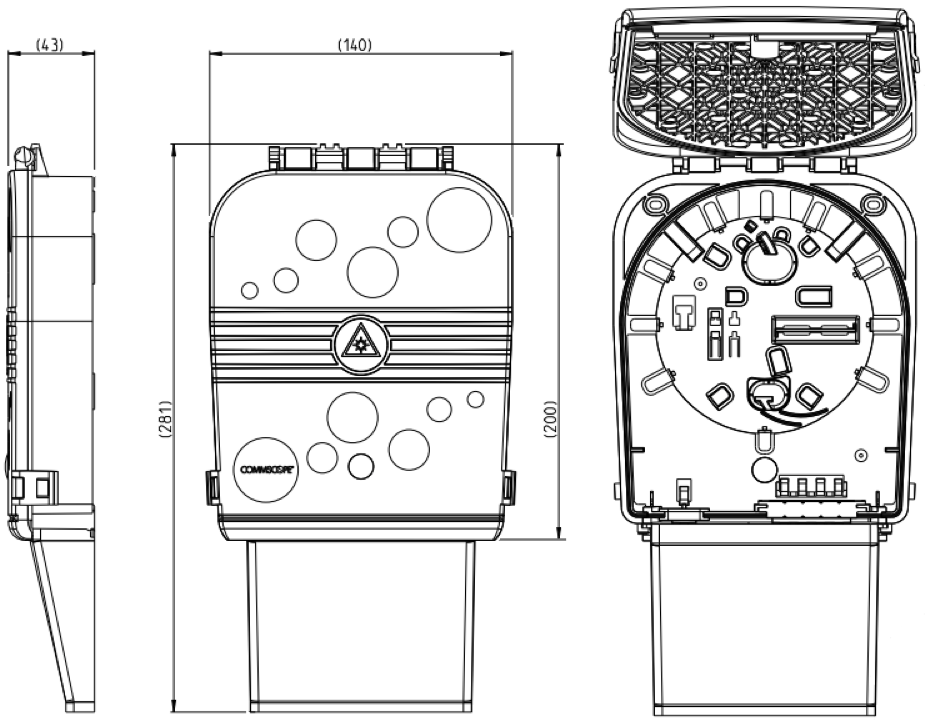

Dimension Drawing

Click on image to enlarge.

Environmental Specifications

Environmental Space	Indoor/Outdoor
Flammability Rating	UL 94 V-0
UV Resistance	UV stabilized
