HCA-A01D

Base Product: HCA

  • Available in:
  • Latin America
  • North America

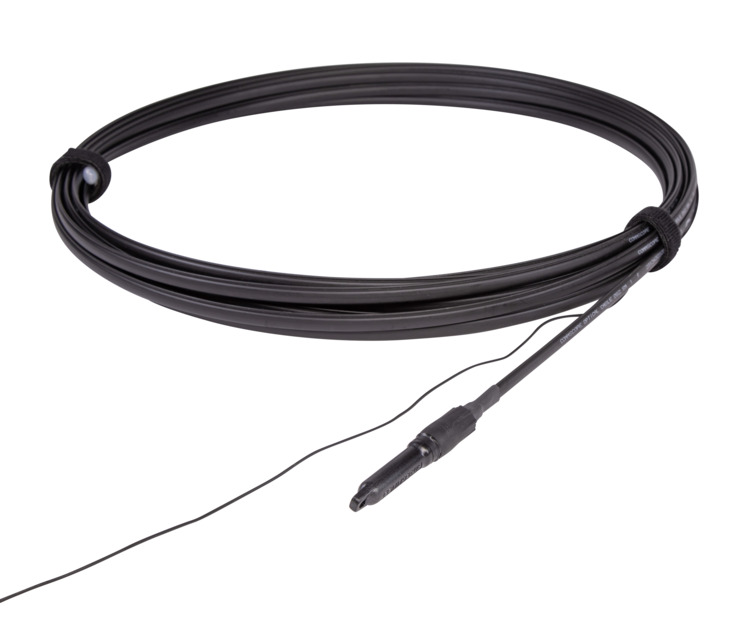

Fiber Optic Drop Cable Assembly, PRODIGY™ Connector Core to Stub, USD Toneable Cable

Configure Product Variants
Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Variants

Configure and display product variants of HCA-A01D by selecting options

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Part Number Cable Assembly Length
No configured items found.
Features and Benefits
  • Cable assembly with the Prodigy™ small form hardened connector
  • Compact and small footprint, space-saving design for high-density environments
  • Compatible with multiple hardened connectors

Product Classification

Regional Availability Latin America | North America
Product Type Fiber drop cable assembly
Product Brand PRODIGY™
Product Series HCA

General Specifications

Cable Type Toneable - Universal Flat
Connector A, quantity 1
Color, boot A Black
Color, connector A Black
Interface, Connector A Prodigy®
Interface, Connector B Unterminated
Jacket Color Black
Total Fibers, quantity 1

Dimensions

Cable Assembly Length Range (ft) 1 – 2000
Cable Outer Diameter 6.0 mm (0.24 in)

Mechanical Specifications

Minimum Bend Radius, loaded 60 mm | 2.362 in
Minimum Bend Radius, unloaded 60 mm | 2.362 in
Tensile Load, long term, maximum 400 N | 89.924 lbf
Tensile Load, short term, maximum 1350 N | 303.492 lbf
Cable Crush Resistance, maximum 10 N/mm | 57.101 lb/in
Dust Cap Pulling Force, minimum 445 N | 100.040 lbf
Mating Durability, maximum 0.5 dB @ 100 cycles

Optical Specifications

Fiber Mode Singlemode
Fiber Type G.657.A2/B2
Insertion Loss, maximum, connector A 0.4 dB
Insertion Loss, typical 0.15 dB
Return Loss, minimum, connector A 65 dB

Environmental Specifications

Installation temperature -30 °C to +60 °C (-22 °F to +140 °F)
Operating Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Storage Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Environmental Space Outdoor
Jacket UV Resistance UV stabilized
Qualification Standards Telcordia GR-3120-CORE

Packaging and Weights

Cable weight 19 kg/km | 12.767 lb/kft
