760253651 | SMB-2P-KJ-266

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

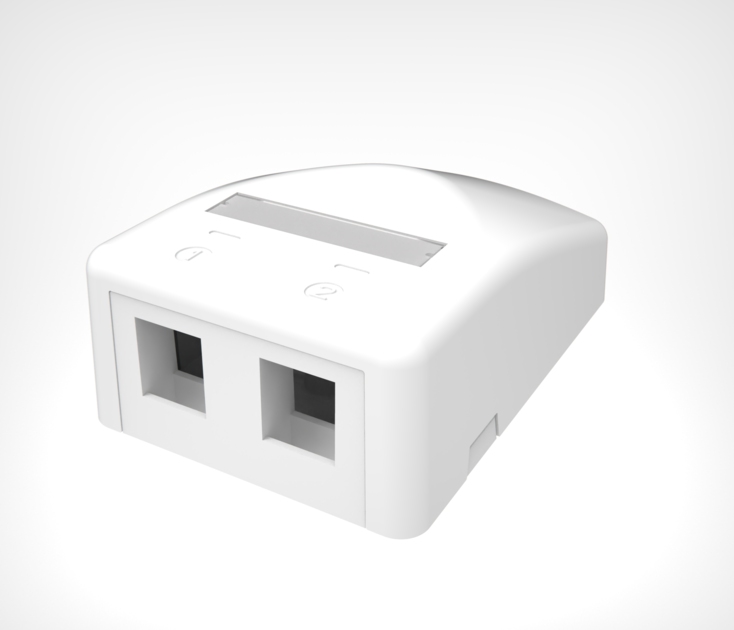

Surface Mount Box, Keystone, 2 port, Pro White

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download

Product classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Surface mount module

General Specifications

Application Used with KJ Series outlets | Used with KJX-6A jacks
Color Pro white
Mounting Surface
Outlet Orientation Flat
Port Marking Type Label
Total Ports, quantity 2

Dimensions

Height 38 mm | 1.496 in
Width 73.3 mm | 2.886 in
Depth 102.2 mm | 4.024 in

Material Specifications

Material Type Polycarbonate

Environmental Specifications

Environmental Space Indoor
Flammability Rating UL 1863
Safety Standard UL | cUL

Packaging and Weights

Packaging quantity 1

Regulatory Compliance/Certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS Compliant
UK-ROHS Compliant

Product classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Surface mount module

General Specifications

Application Used with KJ Series outlets | Used with KJX-6A jacks
Color Pro white
Mounting Surface
Outlet Orientation Flat
Port Marking Type Label
Total Ports, quantity 2

Dimensions

Height 38 mm | 1.496 in
Width 73.3 mm | 2.886 in
Depth 102.2 mm | 4.024 in

Material Specifications

Material Type Polycarbonate

Environmental Specifications

Environmental Space Indoor
Flammability Rating UL 1863
Safety Standard UL | cUL

Packaging and Weights

Packaging quantity 1

Regulatory Compliance/Certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS Compliant
UK-ROHS Compliant

Engineering Drawing

760253651 drawing DWG
760253651 Outline Drawing

Product Compliance Documentation

Global Trade Data
Statement of Compliance RoHS/REACH

Product Specification

760253651 Product specifications

Warranty

CommScope Limited Product Warranty

Engineering Drawing

760253651 drawing DWG
760253651 Outline Drawing

Product Compliance Documentation

Global Trade Data
Statement of Compliance RoHS/REACH

Product Specification

760253651 Product specifications

Warranty

CommScope Limited Product Warranty
