The GigaSPEED XL5™ solution is the newest addition to the GigaSPEED family and the SYSTIMAX copper portfolio. It is a Category 6 solution, like the GigaSPEED XL® platform, but provides higher bandwidth and assured application performance for 2.5GBASE-T and 5GBASE-T applications with up to 100 meters in channel length.
Awards & Innovation
Gold Honoree
CI&M Cabling Innovators Award, 2024
Demand for multi-gigabit connections
Fueled by the introduction of technologies like Wi-Fi 6E, the number of connected multi-gigabit devices is surging.
Many center on 2.5 and 5 Gbps applications.
The multi-gig donut hole
The 2.5G/5G "donut hole" is a challenge
for enterprise network managers.
Can't ensure standard-based
support with conventional
Cat 5e or Cat 6 cabling
BUT
Not enough bandwidth demand
to justify a complete upgrade to
10G-capable Cat 6A
What are your options?
OPTION #1: Use existing Cat 6 according to NBASE-T Guidelines
NBASE-T Guidelines (2016) enable twisted-pair copper cabling to operate at 2.5 Gbps and 5 Gbps for distances of up to 100 meters, assuming the mitigation of any performance risks. Therein lies the problem.
At 2.5 Gbps , the Cat 6 risk is low, and at 5 Gbps it’s medium. The risks for Cat 5e are even more severe.
Mitigation involves one or more steps:
Separating
equipment cords
Setting equipment ports to
"auto-negotiation mode"
Unbundling
horizontal cabling
Using non-adjacent
ports for higher speed
OPTION #2: Rip out the Cat 6 cabling and replace with Cat 6a
Significant network
downtime
Highly disruptive to
daily workflow
Costly and
resource intensive
Difficult to justify if
you're only using half
the available bandwidth
...or think outside the category!

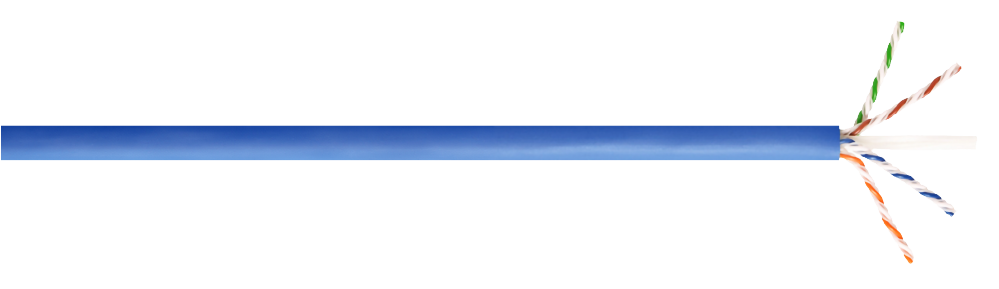

GigaSPEED® XL5
A Cat 6 solution that supports 2.5 and 5 Gbps up to
100 meters… no mitigation or upgrades required.
- Patented variable twist/strand technology greatly improves internal/alien crosstalk performance
- An end-to-end solution
- Supports up to Gbps in a four-connector 100 m channel with fully bundled horizontal cables
- Ideal for connecting devices like in-ceiling Wi-FI 6E access points, IP security cameras and more
Use your existing installation tools and procedures
Cable diameter is nearly identical
to GigaSPEED XL Cat 6 solution
Pack more bandwidth and performance
in a compact footprint
Reduce your cost of installation,
equipment and training
Perfect timing
The transition from Wi-Fi 6 to more bandwidth-heavy Wi-Fi 6E or Wi-Fi 7 has begun.
But applications requiring 2.5G and 5G support are growing.
IP surveillance and security
Server-to-switch connectivity
Video conferencing / collaboration
High-performance workstations
Support Power over Ethernet (PoE)
Campus WLANs
Bridge the gap
A solution that supports 2.5 and 5.0 Gbps bandwidth demands without mitigation or upgrades.
The latest addition to the SYSTIMAX GigaSPEED family of copper solutions. Seamlessly evolve as your bandwidth demands increase. Available now as part of the new SYSTIMAX 2.0 portfolio.
GigaSPEED XL5: in a category all on its own
Cat 5e
Not dead yet...
Don't even think about pushing it to high speed
HIGH RISK
Cat 6
Keeps running
Expect at least "moderate" maintenance if/when pushed to higher speed
MEDIUM RISK
XL5
Brand new
Built to work at higher speed. Comes with bumper-to-bumper dealer warranty
ZERO RISK UP TO 5G
Cat 6A
Assured to work at highest speeds
Most future-ready
FUTURE-READY
Part of the SYSTIMAX 2.0 family of solutions
As a recent addition to CommScope’s iconic SYSTIMAX brand, GigaSPEED XL 5 reflects the vision and promise of SYSTIMAX 2.0. Built on four decades of standards-defining performance, SYSTIMAX 2.0 features an expanded portfolio of future-ready solutions and a bold new commitment to customer support. Limitless potential powered by endless innovation.
Contact your SYSTIMAX representative to find out more
