FGS-MSHS-A

Base Product: FGS-MSHS

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

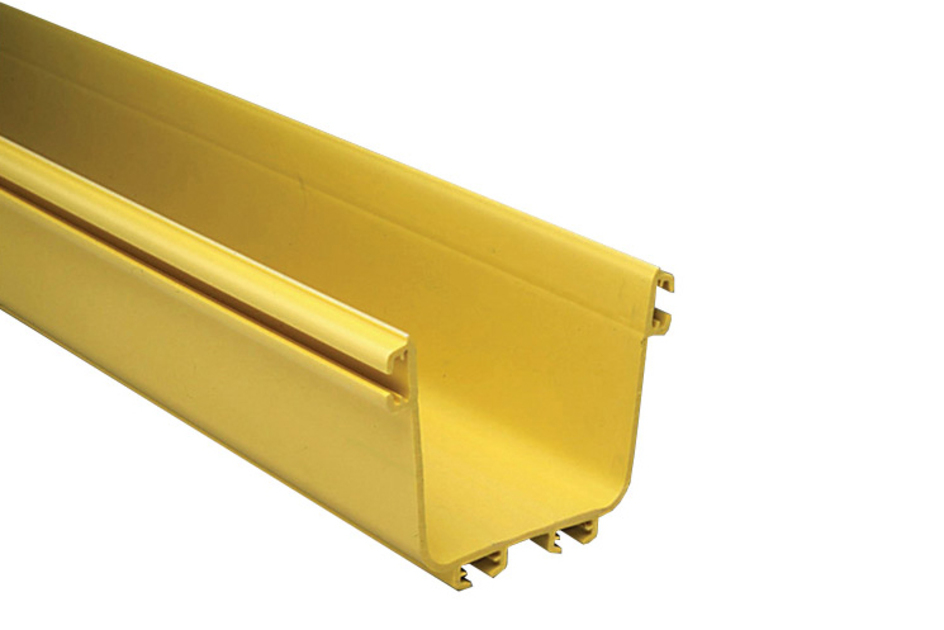

FiberGuide® Horizontal Straight Section, 4x4in, Yellow

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
FiberGuide Design Pro - hero - portrait
FiberGuide® Design Pro

A configuration tool that allows users to import layouts, design 3D raceways and export detailed drawings and BOMs.
Get access

BABA-compliant
Build America Buy America (BABA)*

Rely on CommScope for Broadband Equity Access and Development (BEAD) Program and other government funded projects

Broadband for Everyone Program

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Straight section
Product Brand FiberGuide®
Product Series FGS

General Specifications

Color Yellow
Orientation Horizontal
Section Type Straight section

Dimensions

Height 101.6 mm | 4 in
Width 101.6 mm | 4 in
Length 1829 mm | 72.008 in
System Dimensions 102 mm x 102 mm (4 in x 4 in)

Material Specifications

Material Type Engineering Thermoplastic

Environmental Specifications

Flammability Rating CSA S143 | UL 2024 | UL 94 V-0
Halogen Characteristics Blue Angel | TCO '99 | WEEE
Safety Standard CSA | UL

Packaging and Weights

Weight, net 2.756 kg | 6.076 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Straight section
Product Brand FiberGuide®
Product Series FGS

General Specifications

Color Yellow
Orientation Horizontal
Section Type Straight section

Dimensions

Height 101.6 mm | 4 in
Width 101.6 mm | 4 in
Length 1829 mm | 72.008 in
System Dimensions 102 mm x 102 mm (4 in x 4 in)

Material Specifications

Material Type Engineering Thermoplastic

Environmental Specifications

Flammability Rating CSA S143 | UL 2024 | UL 94 V-0
Halogen Characteristics Blue Angel | TCO '99 | WEEE
Safety Standard CSA | UL

Packaging and Weights

Weight, net 2.756 kg | 6.076 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
