SMOUV
Base Product
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

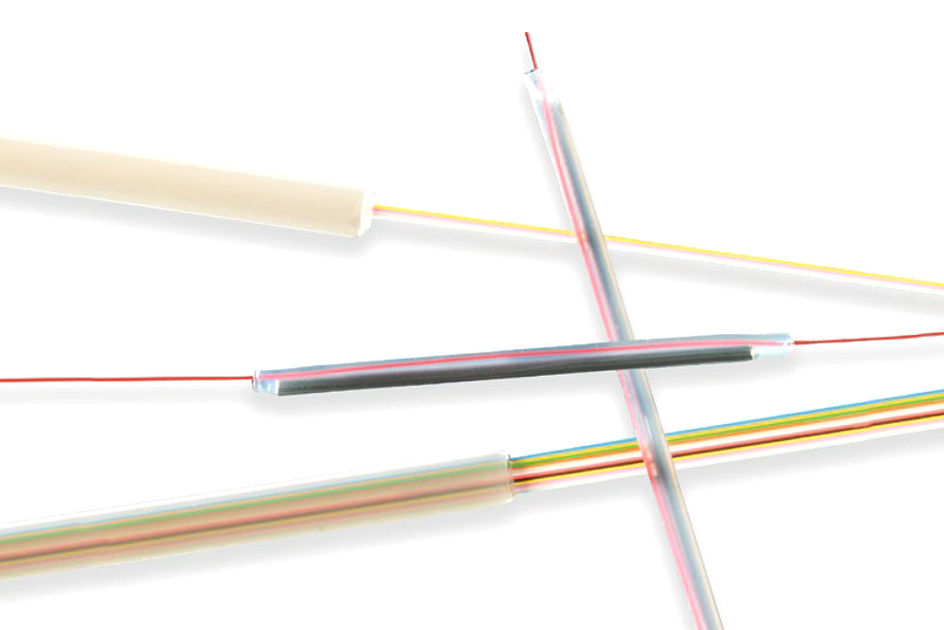

SMOUV Fiber Optic Splice Heat Shrink Protective Sleeve
Configure Product Variants
Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.
Features and Benefits
SMOUV splice protector sleeves provide mechanical and environmental protection for fusion splices of single and ribbonized fiber.
The SMOUV sleeve consists of
SMOUV-1120 sleeves for single fibers are ideal for protecting single fusion splices of primary and secondary tight or semi-tight coated fibers.
SMOUV-1120 sleeves for multiple fibers protect mass fusion ribbons with up to twelve fibers.
SMOUV-1120 sleeves are compatible with most commonly used fiber management systems and organizers. SMOUV-0120 sleeves are designed for protecting single fusion splices of primary and secondary semi-tight coated fibers in high density fiber management systems.
The SMOUV sleeve consists of
- a clear outer heat shrink material
- a low temperature hot melt adhesive to encapsulate the splice
- a stainless steel rod for single fiber splices and a ceramic rod for ribbonized fiber splices to ensure proper alignment and rigidity
SMOUV-1120 sleeves for single fibers are ideal for protecting single fusion splices of primary and secondary tight or semi-tight coated fibers.
SMOUV-1120 sleeves for multiple fibers protect mass fusion ribbons with up to twelve fibers.
SMOUV-1120 sleeves are compatible with most commonly used fiber management systems and organizers. SMOUV-0120 sleeves are designed for protecting single fusion splices of primary and secondary semi-tight coated fibers in high density fiber management systems.
| Item Number | Alternative Item number |
| CK7291-000 | SMOUV-0120-30 |
| 369305-000 | SMOUV-1120-01 |
| 657054-000 | SMOUV-1120-01-PK |
| 103897-000 | SMOUV-1120-02 |
| 418280-000 | SMOUV-1120-02-PK |
| 757849-000 | SMOUV-1120-R2/12-02 |
| 149030-000 | SMOUV-1120-R2/12-02-PK |
- 30 years of global proven field performance
- Compatible with all common fiber coatings
- Optimal design for simple and correct fiber entrance
- Hot melt adhesive especially developed for optimal flow
- Transparent heat shrinkable tube for simple installation verification
- Short installation cycle and compatible with most common ovens
- Available as separate item or as part of an application kit
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Fiber protection sleeve |
| Product Series | SMOUV |
Dimension Drawing
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Fiber protection sleeve |
| Product Series | SMOUV |
Dimension Drawing
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
