558635-1
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

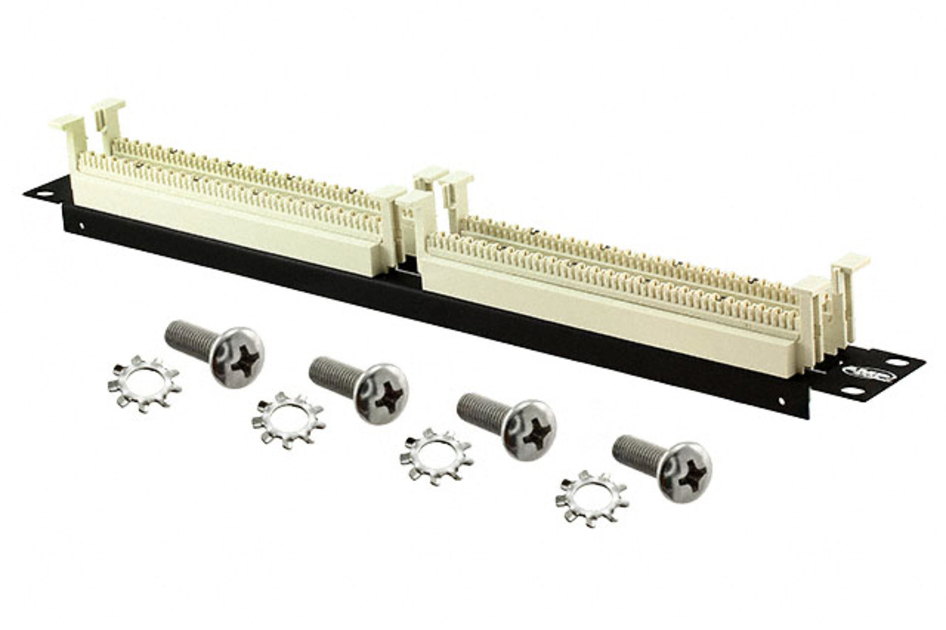

110Connect XC System Category 5e Rack Mount Panel Assembly, 1U, xc wiring block, 100 pair, black
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | NETCONNECT® |
| Product Type | Panel assembly |
| Product Series | 110 Series |
General Specifications
| ANSI/TIA Category | 5e |
| Color | Black |
| Growth Configuration | Fully loaded |
| Panel Mounting | Flush |
| Panel Style | Straight |
| Rack Type | EIA 19 in |
| Rack Units | 1 |
| Termination Type | IDC |
| Transmission Standards | ANSI/TIA-568-C.2 | ISO/IEC 11801 Class D |
| Wiring | T568A | T568B |
Dimensions
| Height | 44.45 mm | 1.75 in |
| Width | 482.6 mm | 19 in |
Material Specifications
| Material Type | High-impact, flame retardant, thermoplastic | Steel |
Packaging and Weights
| Packaging quantity | 1 |
| Packaging Type | Bag | Box |
Regulatory Compliance/Certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | NETCONNECT® |
| Product Type | Panel assembly |
| Product Series | 110 Series |
General Specifications
| ANSI/TIA Category | 5e |
| Color | Black |
| Growth Configuration | Fully loaded |
| Panel Mounting | Flush |
| Panel Style | Straight |
| Rack Type | EIA 19 in |
| Rack Units | 1 |
| Termination Type | IDC |
| Transmission Standards | ANSI/TIA-568-C.2 | ISO/IEC 11801 Class D |
| Wiring | T568A | T568B |
Dimensions
| Height | 44.45 mm | 1.75 in |
| Width | 482.6 mm | 19 in |
Material Specifications
| Material Type | High-impact, flame retardant, thermoplastic | Steel |
Packaging and Weights
| Packaging quantity | 1 |
| Packaging Type | Bag | Box |
Regulatory Compliance/Certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
