NG4-CABLED-MODULES

Base Product

Available in:
Latin America
North America

NG4access® Cabled Modules available in all module sizes and fiber counts up to 864 fibers

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

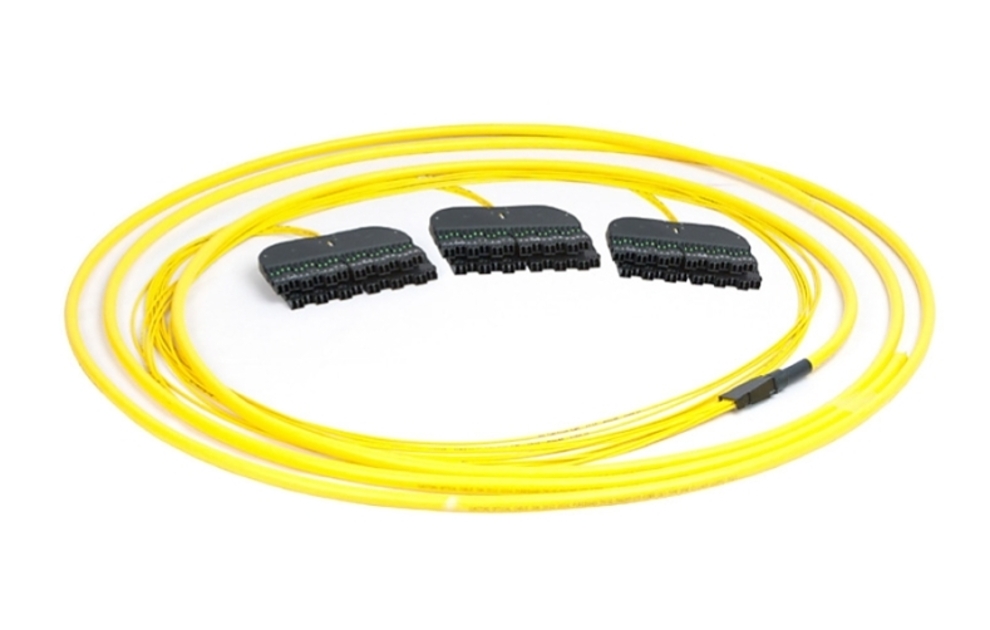

Representative Image - please check configurator for available options

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants

Configure and display product variants of NG4-CABLED-MODULES by selecting options

Fiber Type:

Total Fibers, quantity:

Configuration Type:

Interface, front:

Interface, rear:

Cable Type:

Polarity:

Features and Benefits

NG4 cabled modules with LC and SC connectivity enable the routing of fiber cable to the frame, where multiple connectors are terminated to the frame with a single click. Cabled modules with integrated connectors ensure the cables are kept in sequential order, and help prevent accidental fiber breakage or disruption to adjacent fibers during installation.

Cabled modules are available in a pigtail version for splicing on frame or pre-terminated to 24-fiber microcable, conventional IFC cable or Indoor/outdoor cable.

Cable type options:

IFC stranded
IFC ribbon
Indoor/outdoor stranded
Indoor/outdoor ribbon
Indoor/outdoor rollable ribbon
Microcable

Connector type options:

LC/UPC (front/rear)
SC/UPC (front/rear)
LC/APC (front/rear)
SC/APC (front/rear)
MPO (rear)
stub (rear)

Specifications

Product classification

Regional Availability	Latin America \| North America
Portfolio	CommScope®
Product Type	Fiber cabled module
Product Brand	NG4access®
Product Series	LSX \| NG4
Ordering Note	For fiber modules with custom cable lengths, please contact your local CommScope representative

General Specifications

Body Style	Straight orientation
Interface, front	LC/UPC \| SC/APC \| SC/UPC \| LC/APC
Interface, rear	LC/UPC \| MPO \| SC/APC \| SC/UPC \| Stub tail \| LC/APC

Dimensions

Height	13.3 mm \| 0.524 in
Width	159.9 mm \| 6.295 in
Depth	101 mm \| 3.976 in

Environmental Specifications

Operating Temperature	-5 °C to +40 °C (+23 °F to +104 °F)
Storage Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Relative Humidity	Up to 85%, non-condensing

Product classification

Regional Availability	Latin America \| North America
Portfolio	CommScope®
Product Type	Fiber cabled module
Product Brand	NG4access®
Product Series	LSX \| NG4
Ordering Note	For fiber modules with custom cable lengths, please contact your local CommScope representative

General Specifications

Body Style	Straight orientation
Interface, front	LC/UPC \| SC/APC \| SC/UPC \| LC/APC
Interface, rear	LC/UPC \| MPO \| SC/APC \| SC/UPC \| Stub tail \| LC/APC

Dimensions

Height	13.3 mm \| 0.524 in
Width	159.9 mm \| 6.295 in
Depth	101 mm \| 3.976 in

Environmental Specifications

Operating Temperature	-5 °C to +40 °C (+23 °F to +104 °F)
Storage Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Relative Humidity	Up to 85%, non-condensing
