OCAB-CABINET
Base Product
- Available in:
- EMEA

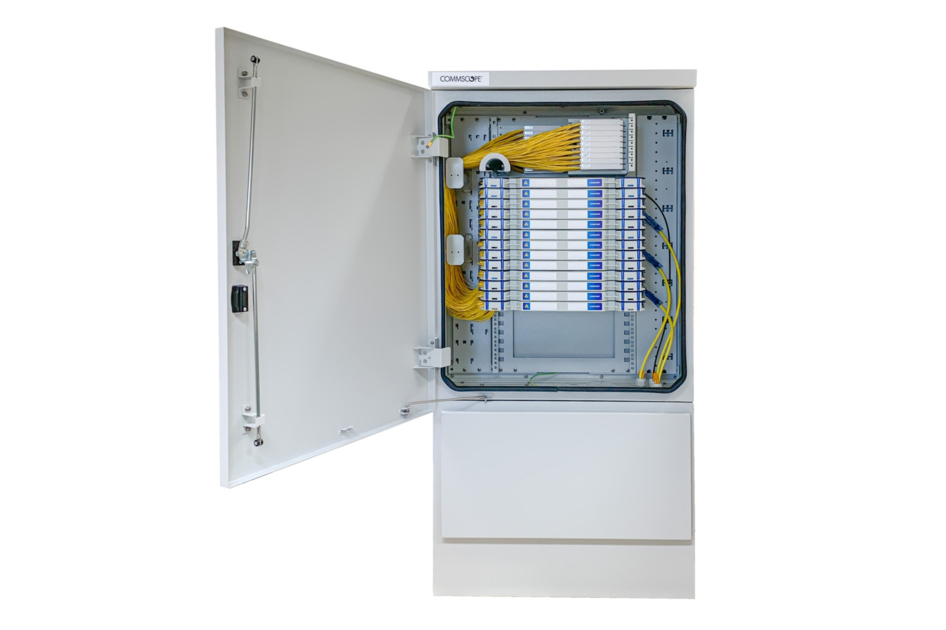

FTTH Outdoor Fiber Drop Cabinet
Configure Product Variants
Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.
Features and Benefits
FTTH Drop Cabinet is designed for outdoor applications (IP54) and needs to be placed on an in-ground root or concrete pre-fabricated base. Cabinet has a robust construction, coupled with a variety of vandal resistant features. Cabinets are supplied fully assembled ready for immediate deployment.
Two cabinet sizes cover a range of drops from 48f to 144f drops. The cabinet is highly configurable with splice trays, LGX splitter modules, and options for both microduct and cable installations. Both cabinet sizes are compact and single doored. The fibre routing is simple and logical, offers high usable density, and is designed around regular accessibility.
Two cabinet sizes cover a range of drops from 48f to 144f drops. The cabinet is highly configurable with splice trays, LGX splitter modules, and options for both microduct and cable installations. Both cabinet sizes are compact and single doored. The fibre routing is simple and logical, offers high usable density, and is designed around regular accessibility.
- Optional Upgrade for anti-graffiti paint finish polystyrene insulation
- Designed to meet IP54 with optional filter media fitted behind louvres
- Single door with removable LH lift-off type hinges and 2-point locking from barrel type lock
Specifications
Product classification
| Regional Availability | EMEA |
| Product Type | Fiber distribution hub |
| Product Series | OCAB |
General Specifications
| Access | Front |
| Color | Light Gray (RAL 7035) | Olive-Green (RAL 6014) |
| Lock Type | Swivel with half cylinder lock (EURO DIN) |
| Mounting | In-ground root | Partially buried | Pre-fabricated base |
Dimension Drawing
| Click on image to enlarge. |
Material Specifications
| Finish | Powder coated polyester |
| Material Type | Stainless steel grade 1.4003, 1.5 mm gauge, welded construction |
Environmental Specifications
| Environmental Space | Above ground |
| Qualification Standards | IEC 60529, IP55 | IK10 |
Packaging and Weights
| Included | Base with covers | Blank cable inlet plate | Cable inlet plate with 6 PG21 blind plugs | Mounting profiles for shelves |
| Packaging Type | Pallet |
Product classification
| Regional Availability | EMEA |
| Product Type | Fiber distribution hub |
| Product Series | OCAB |
General Specifications
| Access | Front |
| Color | Light Gray (RAL 7035) | Olive-Green (RAL 6014) |
| Lock Type | Swivel with half cylinder lock (EURO DIN) |
| Mounting | In-ground root | Partially buried | Pre-fabricated base |
Dimension Drawing
| Click on image to enlarge. |
Material Specifications
| Finish | Powder coated polyester |
| Material Type | Stainless steel grade 1.4003, 1.5 mm gauge, welded construction |
Environmental Specifications
| Environmental Space | Above ground |
| Qualification Standards | IEC 60529, IP55 | IK10 |
Packaging and Weights
| Included | Base with covers | Blank cable inlet plate | Cable inlet plate with 6 PG21 blind plugs | Mounting profiles for shelves |
| Packaging Type | Pallet |
