760248944

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

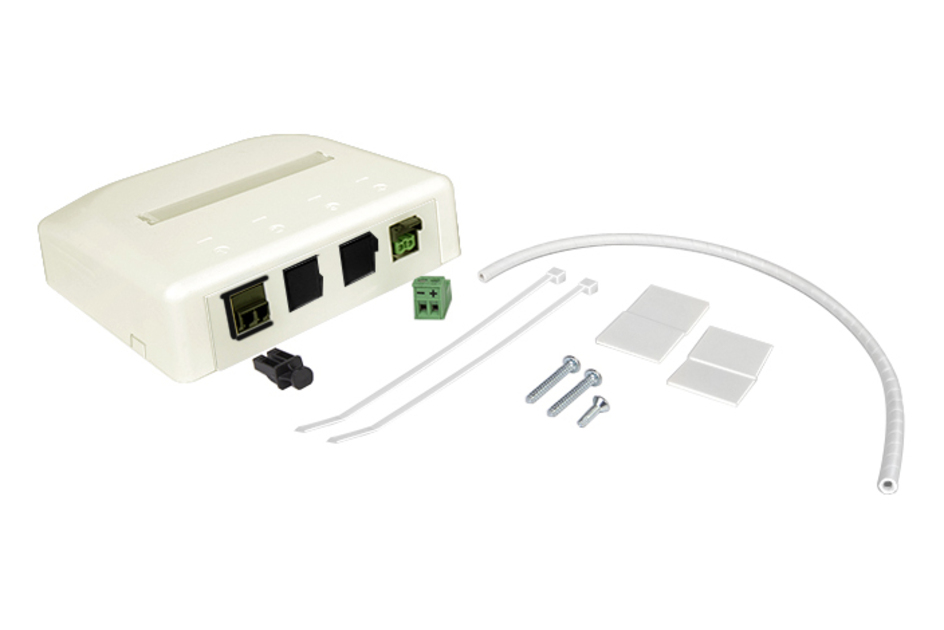

Kit, SMB, 1 Fiber Port, 1 Power Port, Beige

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download
Features and Benefits
Powered Fiber Cable Surface Mount Box Kit, 1 Fiber Port, 1 Power Port, Beige

Product classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Surface mount module
Product Series SL Series | SLX Series

General Specifications

Application Powered fiber
Color Beige
Interface Feature, front Fiber LC Duplex (1) | Open SL Ports (2) | Two wire terminals (1)
Mounting Surface
Outlet Orientation Flat
Port Marking Type Label
Total Ports, quantity 4

Electrical Specifications

Input Power 100 W (NEC Class 2)
Input Voltage 30 Vac | 60 Vdc
Electrical Safety Standard CB | IEC 60950-1 | IEC 62368-1 | UL | cUL

Material Specifications

Material Type Polycarbonate

Environmental Specifications

Environmental Space Indoor
Flammability Rating UL 94 V-0

Packaging and Weights

Packaging quantity 1

Regulatory Compliance/Certifications

Agency Classification
CHINA-ROHS Above maximum concentration value
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted

Product classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Surface mount module
Product Series SL Series | SLX Series

General Specifications

Application Powered fiber
Color Beige
Interface Feature, front Fiber LC Duplex (1) | Open SL Ports (2) | Two wire terminals (1)
Mounting Surface
Outlet Orientation Flat
Port Marking Type Label
Total Ports, quantity 4

Electrical Specifications

Input Power 100 W (NEC Class 2)
Input Voltage 30 Vac | 60 Vdc
Electrical Safety Standard CB | IEC 60950-1 | IEC 62368-1 | UL | cUL

Material Specifications

Material Type Polycarbonate

Environmental Specifications

Environmental Space Indoor
Flammability Rating UL 94 V-0

Packaging and Weights

Packaging quantity 1

Regulatory Compliance/Certifications

Agency Classification
CHINA-ROHS Above maximum concentration value
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted
