P-ZC

Base Product

Available in:
Asia
Australia/New Zealand
EMEA
Latin America
North America

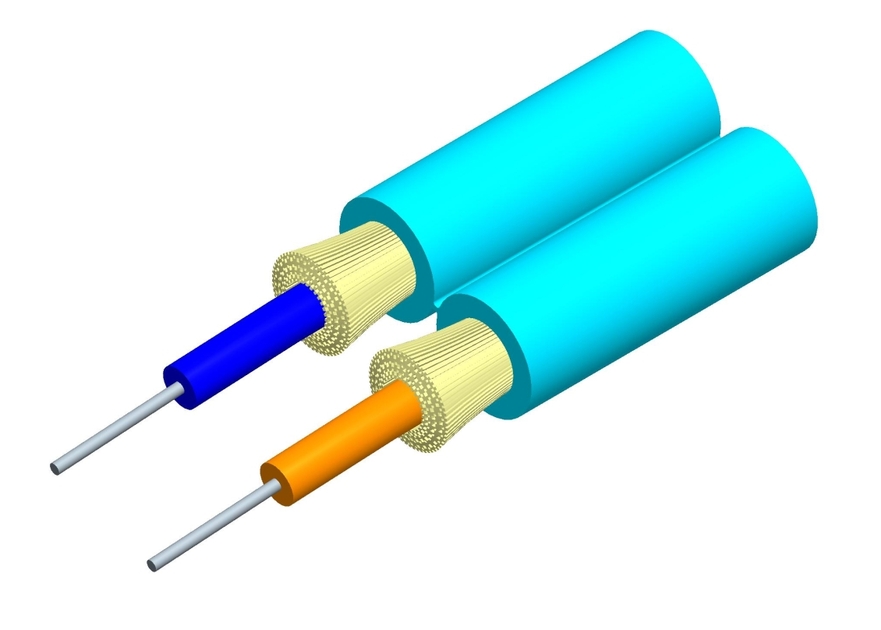

Fiber Optic Cable, Indoor Plenum, Duplex Zip Cord

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants

Configure and display product variants of P-ZC by selecting options

Product	Jacket Marking	Regional Availability	Portfolio	Product Type	Product Series	Cable Type	Construction Type	Jacket Color	Total Fiber Count	Fiber Type	Environmental Space
700218704 \| P-002-ZC-5L-F16AQ Fiber indoor cable, LazrSPEED® 1.6 mm Plenum Zipcord, Multimode OM3, Feet jacket marking, Aqua jacket color Specifications	Feet	Asia \| Australia/New Zealand \| Latin America \| Middle East/Africa \| North America	CommScope®	Fiber indoor cable	P-ZC	Cordage	Non-armored	Aqua	2	OM3 \| LazrSPEED® 300	Plenum
760002055 \| P-002-ZC-6F-F29SL Fiber indoor cable, OptiSPEED® 2.9 mm Plenum Zipcord, Multimode OM1, Feet jacket marking, Slate jacket color Specifications	Feet	Asia \| Australia/New Zealand \| Latin America \| Middle East/Africa \| North America	CommScope®	Fiber indoor cable	P-ZC	Cordage	Non-armored	Slate	2	OM1 \| OptiSPEED®	Plenum
760002071 \| P-002-ZC-5L-F29AQ Fiber indoor cable, LazrSPEED® 2.9mm Plenum Zipcord, Multimode OM3, Feet jacket marking, Aqua jacket color Specifications	Feet	Asia \| Australia/New Zealand \| Latin America \| Middle East/Africa \| North America	CommScope®	Fiber indoor cable	P-ZC	Cordage	Non-armored	Aqua	2	OM3 \| LazrSPEED® 300	Plenum
760004549 \| P-002-ZC-8W-F29YL Fiber indoor cable, TeraSPEED® 2.9 mm Plenum Zipcord, Singlemode G.652.D and G.657.A1, Feet jacket marking, Yellow jacket color Specifications	Feet	Asia \| Australia/New Zealand \| Latin America \| Middle East/Africa \| North America	CommScope®	Fiber indoor cable	P-ZC	Cordage	Non-armored	Yellow	2	G.652.D and G.657.A1 \| TeraSPEED®	Plenum
760018101 \| P-002-ZC-6F-F16SL Fiber indoor cable, OptiSPEED® 1.6 mm Plenum Zipcord, Multimode OM1, Feet jacket marking, Slate jacket color Specifications	Feet	Asia \| Australia/New Zealand \| Latin America \| Middle East/Africa \| North America	CommScope®	Fiber indoor cable	P-ZC	Cordage	Non-armored	Slate	2	OM1 \| OptiSPEED®	Plenum
760031104 \| P-002-ZC-5K-F16AQ Fiber indoor cable, LazrSPEED® 1.6 mm Plenum Zipcord, Multimode OM4, Feet jacket marking, Aqua jacket color Specifications	Feet	Asia \| Australia/New Zealand \| Latin America \| Middle East/Africa \| North America	CommScope®	Fiber indoor cable	P-ZC	Cordage	Non-armored	Aqua	2	OM4 \| LazrSPEED® 550	Plenum
760038232 \| P-002-ZC-5K-F29AQ Fiber indoor cable, LazrSPEED® 2.9mm Plenum Zipcord, Multimode OM4, Feet jacket marking, Aqua jacket color Specifications	Feet	Asia \| Australia/New Zealand \| Latin America \| Middle East/Africa \| North America	CommScope®	Fiber indoor cable	P-ZC	Cordage	Non-armored	Aqua	2	OM4 \| LazrSPEED® 550	Plenum
760067264 \| P-002-ZC-8W-F16YL Fiber indoor cable, TeraSPEED® 1.6 mm Plenum Zipcord, Singlemode G.652.D and G.657.A1, Feet jacket marking, Yellow jacket color Specifications	Feet	Asia \| Australia/New Zealand \| Latin America \| Middle East/Africa \| North America	CommScope®	Fiber indoor cable	P-ZC	Cordage	Non-armored	Yellow	2	G.652.D and G.657.A1 \| TeraSPEED®	Plenum

Previous
1
2
3
4
5
6
7
...13
Next

Jump to page:

Specifications

Product classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	Fiber indoor cable
Product Series	P-ZC

General Specifications

Cable Type	Cordage
Construction Type	Non-armored
Subunit Type	Gel-free

Ordering Tree

Click on image to enlarge.

Environmental Specifications

Installation temperature	0 °C to +70 °C (-32 °F to +158 °F)
Operating Temperature	-20 °C to +70 °C (-4 °F to +158 °F)
Storage Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Cable Qualification Standards	ANSI/ICEA S-83-596 \| Telcordia GR-409
Environmental Space	Plenum

Product classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	Fiber indoor cable
Product Series	P-ZC

General Specifications

Cable Type	Cordage
Construction Type	Non-armored
Subunit Type	Gel-free

Ordering Tree

Click on image to enlarge.

Environmental Specifications

Installation temperature	0 °C to +70 °C (-32 °F to +158 °F)
Operating Temperature	-20 °C to +70 °C (-4 °F to +158 °F)
Storage Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Cable Qualification Standards	ANSI/ICEA S-83-596 \| Telcordia GR-409
Environmental Space	Plenum
