760240238 | FIST-SOSA2-2SP-S

Base Product: FIST-SPLICE-TRAYS

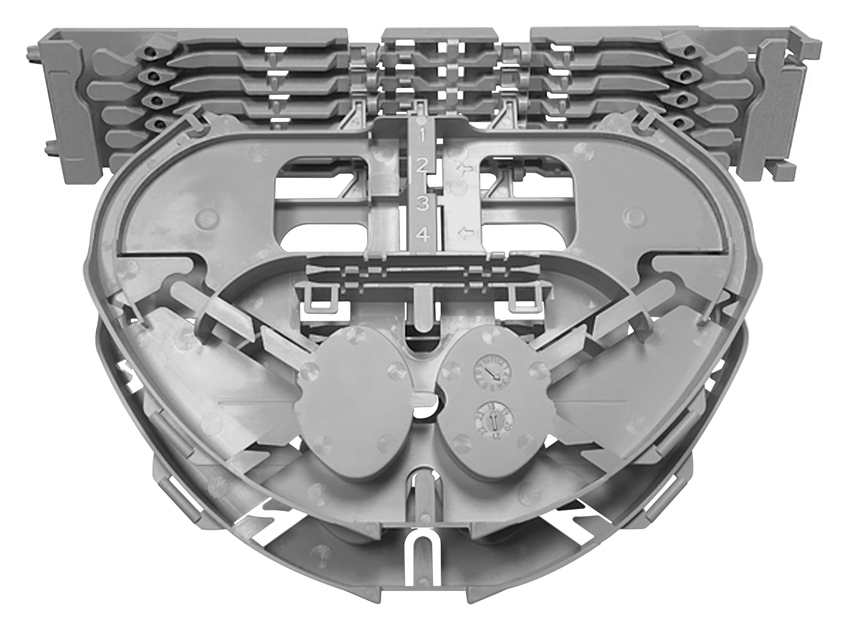

FIST® Splice/patch Sub-assembly kit with 2 trays, each for holding up to 2 fiber adapters and 8 splice protectors

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Features and Benefits

Splice sub-assemblies consists of a wraparound groove plate holding the included splice organizer trays
Groove plates are designed with slots for routing fiber to and from the organizer trays

Specifications

Product classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Product Type	Fiber splice/patch tray
Product Brand	FIST®

Application	For use with FIST MK2 organizers
Color	Gray
Splice Tray Chip Type	Heat shrink
Splice Tray Construction	MS (Mass splicing for up to 8 primary/secundary coated fibers) \| SP (Single patch for up 2 SC or 4 LC adapters
Splice Tray Included, quantity	2
Splices per Tray, note	8 splices (250/900µm) per tray
Splices per Tray, quantity	8

Height	152 mm \| 5.984 in
Width	105 mm \| 4.134 in
Depth	12 mm \| 0.472 in
Fiber Storage Length, maximum	800 mm for mixed 250/900 μm fibers
Fiber Storage Length, minimum	650 mm \| 25.591 in
Splice Protector Length, maximum	45 mm \| 1.772 in
Splice Protector Length, minimum	45 mm \| 1.772 in
Splice Protector Diameter, maximum	2.8 mm \| 0.11 in
Splice Protector Diameter, minimum	2.8 mm \| 0.11 in

Material Type

PC/ABS

Minimum Bend Radius, standard

15 mm | 0.591 in

Agency	Classification
CHINA-ROHS	Below maximum concentration value
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS	Compliant
UK-ROHS	Compliant
