2153437-1 | CPP-SMOD-SL-1U-24

Base Product: CPP-MODULAR-PANELS

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America

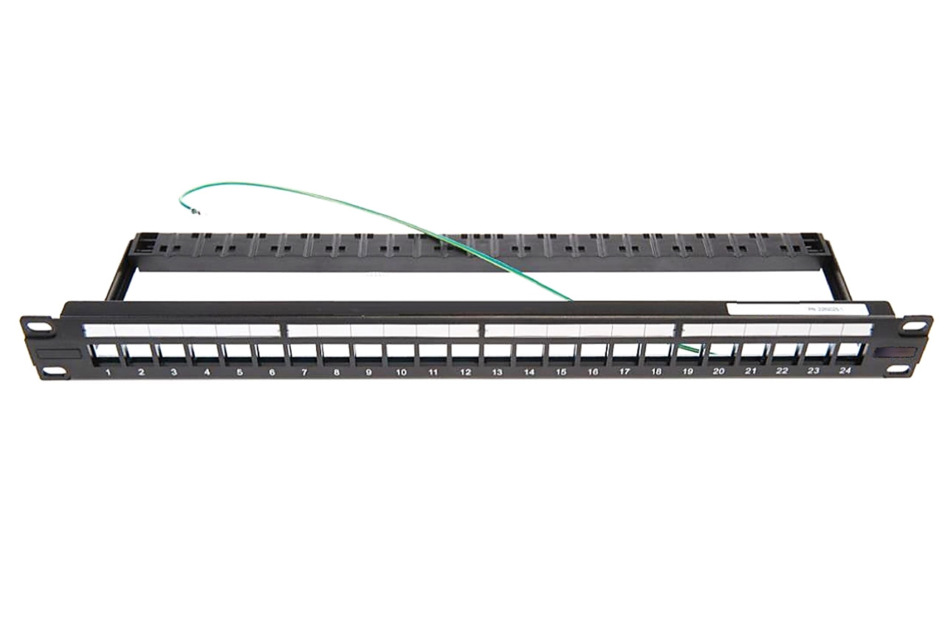

Shielded Modular Panel, SL, 1U, 24 port, Black

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download

Product classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America
Portfolio CommScope®
Product Type RJ45 patch panel
Product Series SL Series

General Specifications

ANSI/TIA Category NA
Cable Type Shielded | Unshielded
Color Black
Intelligence Type Passive
Panel Style Flat
Rack Type EIA 19 in
Rack Units 1
Total Ports, quantity 24

Dimensions

Height 44.45 mm | 1.75 in
Width 482.6 mm | 19 in
Depth 17.2 mm | 0.677 in
Depth, with cable management 123.2 mm | 4.85 in

Material Specifications

Material Type High-impact, flame retardant, thermoplastic | Powder-coated steel

Environmental Specifications

Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)
Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Relative Humidity Up to 95%, non-condensing
Flammability Rating UL 94 V-0

Packaging and Weights

Packaging Material Eco-friendly, single-use plastics-free
Packaging quantity 1

Regulatory Compliance/Certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS Compliant
UK-ROHS Compliant
