760238932 | EHD-SP-24LC-SMR-B-ULL

Base Product: EHD-SPLICE-CASSETTES

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

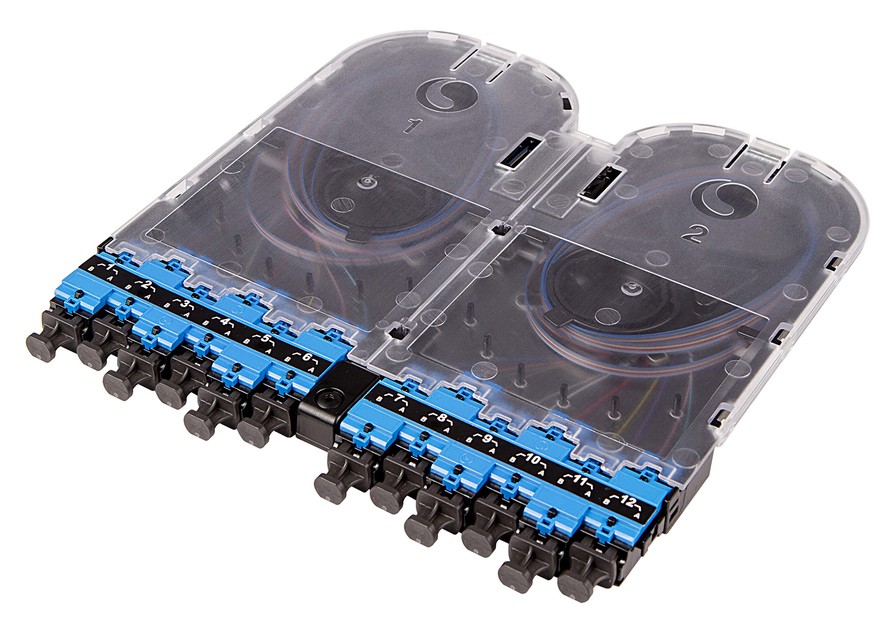

EHD ULL Singlemode Splice Cassette, 24LC with dust plugs and ribbon pigtails

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Fiber cassette with ribbon pigtail
Product Brand SYSTIMAX ULL
Product Series EHD

General Specifications

Color, front Blue
Interface, front LC/UPC
Interface, rear Ribbon pigtail
Polarity Method B Enhanced
Shuttered No
Total Fibers, quantity 24

Dimensions

Height 11.43 mm | 0.45 in
Width 169.672 mm | 6.68 in
Depth 163.83 mm | 6.45 in

Optical Specifications

Fiber Mode Singlemode
Fiber Type G.657.A2
Insertion Loss, maximum 0.25 dB

Environmental Specifications

Qualification Standards IEC 61753-1 | TIA-568.3-D
Safety Standard CE | CSA | UL

Packaging and Weights

Included Mass Fusion Splice Protection Sleeves
Packaging quantity 1
Weight, net 0.181 kg | 0.4 lb

Regulatory Compliance/Certifications

Agency Classification
CHINA-ROHS Above maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted
