UDS-PANELS
Base Product
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

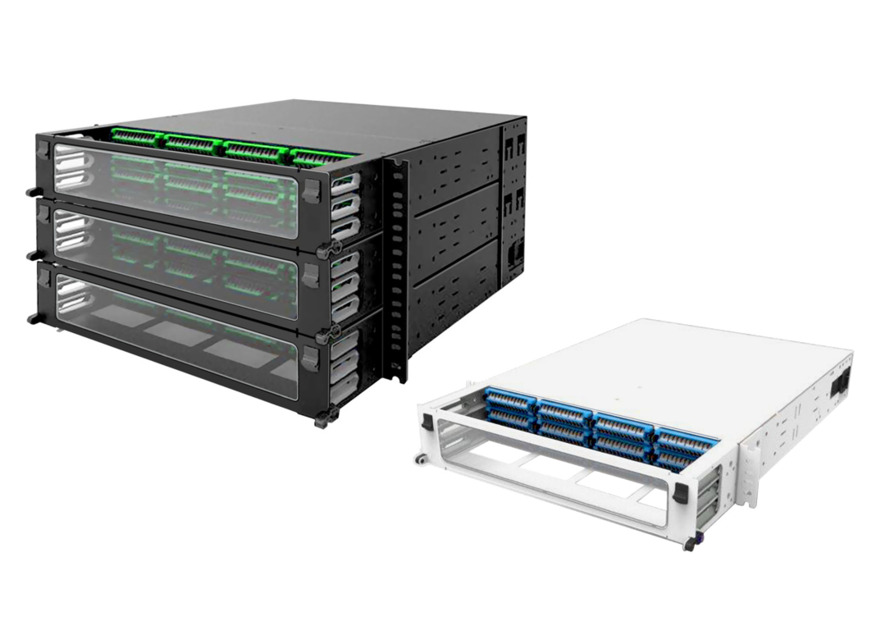

Ultra density splice (UDS) fiber optic panels
Configure Product Variants
Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.
Features and Benefits
ULTRA-DENSE, EASY-TO-MANAGE FIBER CONNECTIVITY
Compact design maximizes fiber port density within each rack, while a removable rear splicing drawer and superior cable routing ensure easy fiber access and control.
- Up to 288 fibers in a 2RU size or 864 fibers in a 6RU
- Connect up to 6,912 fibers in a single rack
- Intelligent cable routing supports multiple incoming cable configurations
SEAMLESS FLEXIBLE SCALING
The modular design supports your migration to increasingly higher fiber-count ribbon cables, giving you more headroom for future growth.
- Combine up to eight 6RU panels to accept 6,912 fibers in a single rack
- The ability to pay as your grow allows for incremental spending as needed
- Available with Method A or Method B Enhanced polarity
FASTER, SIMPLIFIED DEPLOYMENT
With a completely removable splice drawer, open access to trays, and ample pigtail slack, the ultra-density splice panel can be installed by one person in about half the time of comparable solutions.
- 12-fiber ribbon pigtails allow fast mass fusion splicing
- Internal, translucent shutters provide dust protection while making troubleshooting easy
- Shutters automatically actuated by connector insertion enable one-handed operation
- UDS fiber panels feature a modular, ultra-dense design that scales effortlessly while holding maintenance costs and space requirements to a minimum
- Each UDS fiber panel is delivered with a complete installation kit that includes a ship along kit with all necessary accessories to install the given panel
- UDS fiber panels are perfect suited for areas like meet-me rooms and interconnects
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Fiber patch/splice panel |
| Product Series | UDS |
General Specifications
| Color | Black | White |
| Intelligence Type | Not iPatch® ready |
| Interface, front | LC/UPC | LC/APC |
| Pigtail Assembly Type | 12-fiber, ribbon |
| Rack Type | EIA 19 in |
| Shelf Movement | Sliding, rear |
Environmental Specifications
| Safety Standard | cUL US 1863 |
Packaging and Weights
| Packaging quantity | 1 |
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Fiber patch/splice panel |
| Product Series | UDS |
General Specifications
| Color | Black | White |
| Intelligence Type | Not iPatch® ready |
| Interface, front | LC/UPC | LC/APC |
| Pigtail Assembly Type | 12-fiber, ribbon |
| Rack Type | EIA 19 in |
| Shelf Movement | Sliding, rear |
Environmental Specifications
| Safety Standard | cUL US 1863 |
Packaging and Weights
| Packaging quantity | 1 |
