FIST-GPSTF-TRAYS

Base Product

Available in:
EMEA

FIST GPSTF Pre-cabled Fiber Patch/Splice Trays for FIST fiber optic panels

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Representative Image – see General Specifications for more detail

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants

Configure and display product variants of FIST-GPSTF-TRAYS by selecting options

Features and Benefits

The FIST-GPSTF is a mechanical tray assembly for the FIST fiber management system in a rack environment. FIST-GPSTF-12’s are typically used in conjunction with a FIST splice and patch shelf (FIST-GPS2).

Features

Patching only, using patch cords, connectorized break-out
Splicing loose tube cable, non connectorized intra-facility or break-out cable to pigtails and patching these pigtails to patch cords
Splitters can be integrated
Full patching capability on the tray and between the trays of one shelf.

Patching trays are used instead of front patch panels

Patch cords are better managed in a horizontal plane
Full access at both sides of the connection
Reconnection to other positions in the same tray or shelf does not result in uncontrolled overlengths
Various connector adapters possible
Bend controls guide and protect the pigtail cable and ensure controlled cable bending
Empty versions available as well as filled with various types of adapters/retainers and eventually pre-fibered with the conforming pigtails.

Includes FIST management system for fiber organization and splicing
Designed to accommodate the FIST generic fiber optic shelves for splicing, patching and passive component integration

Specifications

Product classification

Regional Availability	EMEA
Portfolio	CommScope®
Product Type	Fiber patch/splice tray
Product Brand	FIST®
Product Series	FIST-GPST

General Specifications

Functionality	Patching \| Splicing
Application	For use with FIST panels
Color	Gray
Interface, front	LC/UPC \| LSH/APC \| SC/APC \| SC/UPC \| LC/APC
Interface, Input	LC/APC \| LC/UPC \| LSH/APC \| SC/APC \| SC/UPC
Interface, Output	LC/APC \| LC/UPC \| LSH/APC \| SC/APC \| SC/UPC
Tray Orientation	Left orientation \| Right orientation

Dimensions

Height	16 mm \| 0.63 in
Width	315 mm \| 12.402 in
Depth	190 mm \| 7.48 in

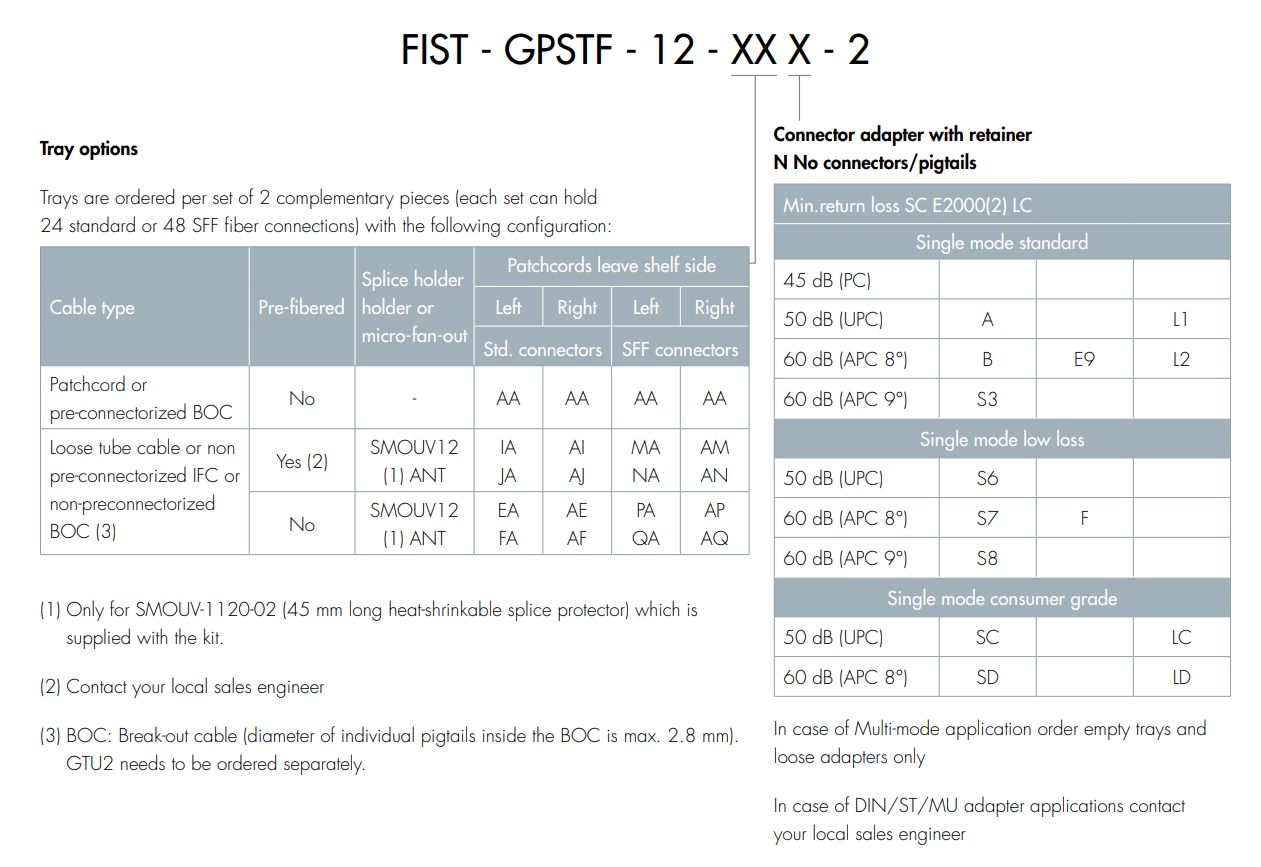

Ordering Tree

Click on image to enlarge.

Optical Specifications

Fiber Mode

Multimode | Singlemode

Environmental Specifications

Operating Temperature	-5 °C to +45 °C (+23 °F to +113 °F)
Storage Temperature	-30 ºC to +60 ºC (-22 ºF to +140 ºF)
Relative Humidity	Up to 93%, non-condensing

Packaging and Weights

Packaging quantity
