760246204 | OCAB-P-I3-INW-144F

Base Product: OCAB-CABINET

Available in:
EMEA

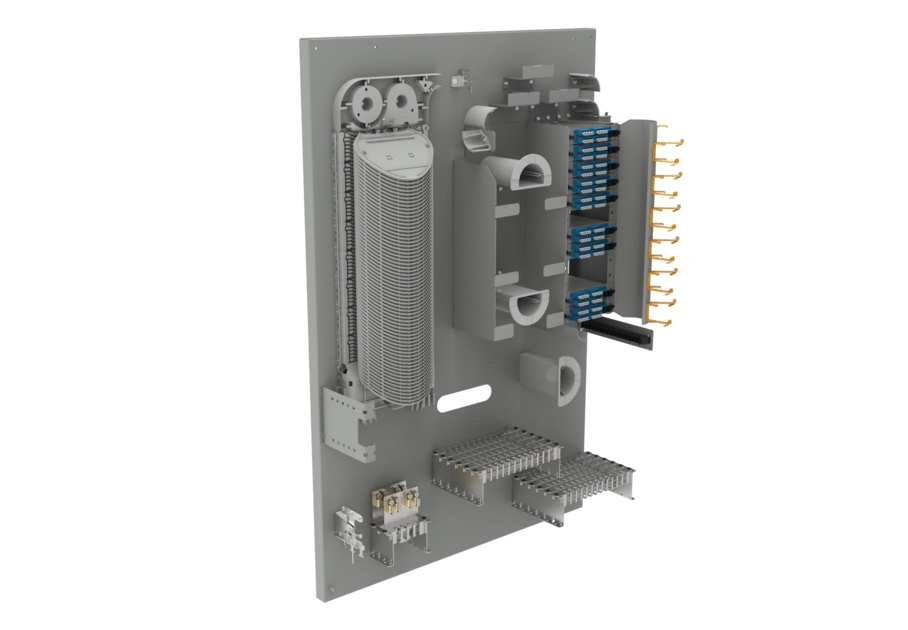

OCAB Outdoor fiber distribution cabinet - innerwork

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Features and Benefits

Cabinet innerwork for up to 144f customer connections
· 96 up to 144 Point-to-multipoint positions, SC & LC footprint
· 8 branch-off blown fibre Ø5,7& 8mm microtube positions
· 4 branch-off blown fibre Ø 12mm microtube positions
· 144 direct drops blown fibre Ø5,7 & 8mm microtube positions
· Up to12 OCM1 LGX Style Fiber Optic Splitter Module positions
· Transient-free, modular, flexible fibre management ·
· FIST single-circuit and single-element splice trays
· Up to 768 splices (including SC trays 256 splices)
· Storage area for looped cable
· Compatible with all fibre types: G.652D and G.657 series
· Fast and simple installation

Specifications

Product classification

Regional Availability	EMEA
Product Type	Fiber cross-connect hub
Product Series	OCAB

General Specifications

Color	Light Gray (RAL 7035)
Mounting	Cabinet

Dimensions

Height	960 mm \| 37.795 in
Width	640 mm \| 25.197 in
Depth	222 mm \| 8.74 in
Enclosure Size	Medium

Material Specifications

Finish

Powder coated polyester

Packaging and Weights

Packaging quantity	5
Packaging Type	Pallet

Regulatory Compliance/Certifications

Agency	Classification
CHINA-ROHS	Above maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS	Compliant/Exempted
UK-ROHS	Compliant/Exempted
