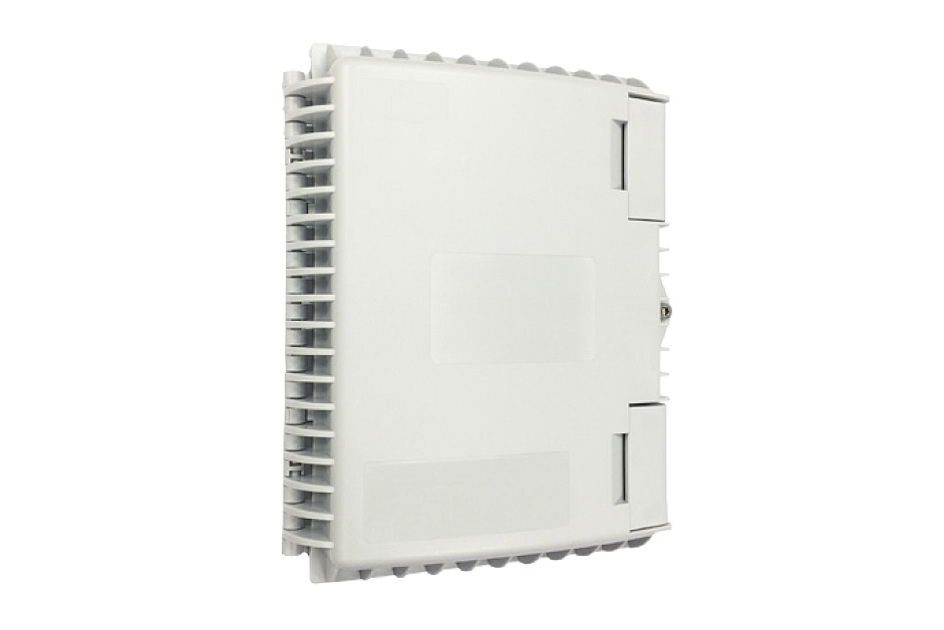

OWB Fiber Optic Wall Mount Fiber Box, outdoor
Configure Product Variants
Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.
Features and Benefits
- Compact sized with multiple cable entry point options
- Used as a premises connection device in FTTH networks
- Easy access via the combined hinge + latch design
- High sealing rate, UV resistant and UL compliant
- Slack storage (3 mtr) for drop- and premise connection cable
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | Latin America | North America |
| Product Type | Fiber wall box |
| Product Series | OWB |
General Specifications
| Functionality | Patching | Splicing |
| Access | Front |
| Application | For cables with outer diameter 3 x 5.4 mm: 1 on top + 1 on bottom | For cables with outer diameter up to 10 mm: each on both sides | For cables with outer diameter up to 5 mm: 1 on rear + 4 on bottom |
| Enclosure Color | Gray |
| Front Cover Type | Hinged with latches |
| Interface | LC/APC | SC/APC |
| Lock Type | Ski latch and screw |
| Mounting | Wall |
Dimensions
| Height | 209.8 mm | 8.26 in |
| Width | 173.74 mm | 6.84 in |
| Depth | 71.88 mm | 2.83 in |
Dimension Drawing
| Click on image to enlarge. |
Material Specifications
| Enclosure Material Type | LSZH thermoplastic |
Optical Specifications
| Fiber Mode | Singlemode |
Environmental Specifications
| Installation temperature | -5 °C to +45 °C (+23 °F to +113 °F) |
| Storage Temperature | -40 ºC to +70 ºC (-40 ºF to +158 ºF) |
| Environmental Space | Outdoor |
| Flammability Rating | UL 94 V-0 |
| Qualification Standards | IEC 60529, IP65 |
Packaging and Weights
| Included | Grommets |
| Packaging quantity | 1 |
| Packaging Type | Box | Carton |
Product classification
| Regional Availability | Asia | Australia/New Zealand | Latin America | North America |
| Product Type | Fiber wall box |
| Product Series | OWB |
General Specifications
| Functionality | Patching | Splicing |
| Access | Front |
| Application | For cables with outer diameter 3 x 5.4 mm: 1 on top + 1 on bottom | For cables with outer diameter up to 10 mm: each on both sides | For cables with outer diameter up to 5 mm: 1 on rear + 4 on bottom |
| Enclosure Color | Gray |
| Front Cover Type | Hinged with latches |
| Interface | LC/APC | SC/APC |
| Lock Type | Ski latch and screw |
| Mounting | Wall |
Dimensions
| Height | 209.8 mm | 8.26 in |
| Width | 173.74 mm | 6.84 in |
| Depth | 71.88 mm | 2.83 in |
Dimension Drawing
| Click on image to enlarge. |
Material Specifications
| Enclosure Material Type | LSZH thermoplastic |
Optical Specifications
| Fiber Mode | Singlemode |
Environmental Specifications
| Installation temperature | -5 °C to +45 °C (+23 °F to +113 °F) |
| Storage Temperature | -40 ºC to +70 ºC (-40 ºF to +158 ºF) |
| Environmental Space | Outdoor |
| Flammability Rating | UL 94 V-0 |
| Qualification Standards | IEC 60529, IP65 |
Packaging and Weights
| Included | Grommets |
| Packaging quantity | 1 |
| Packaging Type | Box | Carton |
