OCJ
Base Product
- Available in:
- Europe
- Middle East/Africa

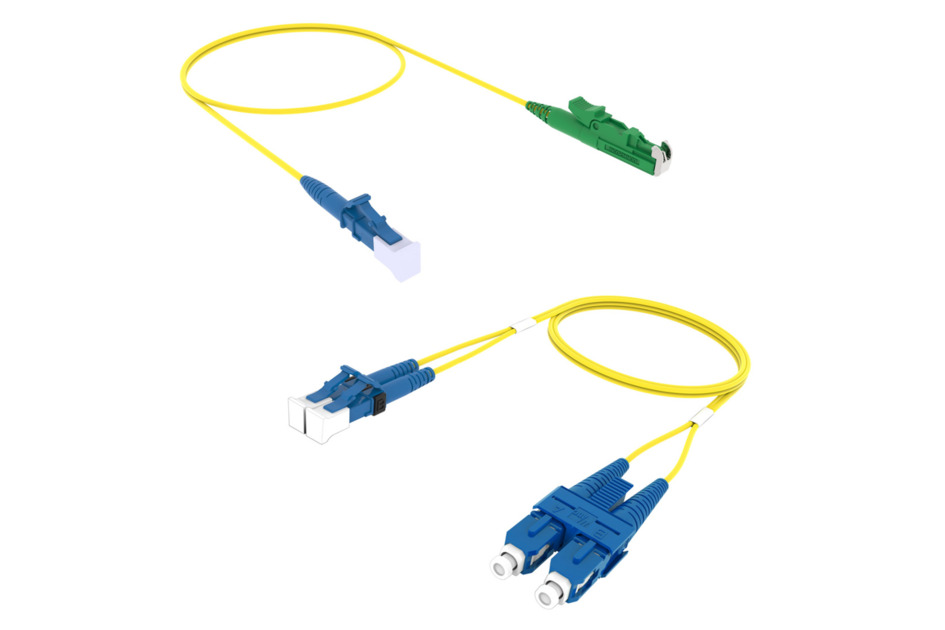

OCJ Series Singlemode Fiber Optic Patch Cord
Configure Product Variants
Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.
Features and Benefits
OCJ Patch cords are simplex or duplex fiber cables pre-assembled with a connector at both ends. They are typically used to cross-connect patch panel to patch panel and to interconnect patch panels to optical equipment.
FEATURES
FEATURES
- CommScope offers two ranges of cable assembly specifications according to IEC 61755-1
- Grade C as a standard quality for use in data centers and telecommunication networks
- Grade B as a superior quality if lower attenuation (Insertion) losses are required, for example to cover extra distance
- All connectors are built with full ceramic ferrules and tuned for best performance and compatibility according to IEC 61755-3-1 and -3-2
- CommScope’s standard single mode fiber is according to ITU-T G.657.A1 ( MFD 9.2 µm ± 0.4 µm) and G.657.A2 (MFD 8.6 µm ± 0.4 µm ) If other fiber types or MFD (Mode Field Diameter ) are required, please contact your CommScope representative
Specifications
Product classification
| Regional Availability | Europe | Middle East/Africa |
| Product Type | Fiber patch cord, duplex | Fiber patch cord, simplex |
| Product Series | OCJ |
General Specifications
| Jacket Color | Yellow |
Dimensions
| Cable Assembly Length Range (m) | 1 – 30 |
| Diameter Over Jacket | 1.8 mm | 0.071 in |
Ordering Tree
| Click on image to enlarge. |
Optical Performance
| Click on image to enlarge. |
Optical Specifications
| Fiber Mode | Singlemode |
| Fiber Type | G.657.A1, TeraSPEED® |
Environmental Specifications
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Operating Temperature Note | Specification applicable to non-terminated bulk fiber cable |
| Environmental Space | Low Smoke Zero Halogen (LSZH) |
Packaging and Weights
| Packaging quantity | 1 |
Product classification
| Regional Availability | Europe | Middle East/Africa |
| Product Type | Fiber patch cord, duplex | Fiber patch cord, simplex |
| Product Series | OCJ |
General Specifications
| Jacket Color | Yellow |
Dimensions
| Cable Assembly Length Range (m) | 1 – 30 |
| Diameter Over Jacket | 1.8 mm | 0.071 in |
Ordering Tree
| Click on image to enlarge. |
Optical Performance
| Click on image to enlarge. |
Optical Specifications
| Fiber Mode | Singlemode |
| Fiber Type | G.657.A1, TeraSPEED® |
Environmental Specifications
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Operating Temperature Note | Specification applicable to non-terminated bulk fiber cable |
| Environmental Space | Low Smoke Zero Halogen (LSZH) |
Packaging and Weights
| Packaging quantity | 1 |
