HCA-AL1C

Base Product: HCA

Available in:
Latin America
North America

Fiber Optic Drop Cable Assembly, Prodigy connector core only to SC/APC, USD dielectric cable

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Build America Buy America (BABA)*

Rely on CommScope for Broadband Equity Access and Development (BEAD) Program and other government funded projects

Broadband for Everyone Program

Prodigy to SC APC on USD Toneable Cable

Product Variants

Configure and display product variants of HCA-AL1C by selecting options

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Cable Assembly Length m ft Spool Option

Part Number	Cable Assembly Length	UOM	Spool Option
No configured items found.

Features and Benefits

Hardened connectors are factory-terminated and environmentally sealed for use in optical drop cable deployments
Hardened drop cables incorporate hardened connector technology that is designed to withstand the rugged outside plant environment
Hardened drop cables simplify installation and maintenance by reducing splicing requirements in the distribution portion of the network
*Product complies with the Build America, Buy America Act (BABAA) requirements of the Infrastructure Investment and Jobs Act of 2021 (Pub. L. 117- 58, §§ 70901-70953), or is the subject of a waiver approved by the Secretary of Commerce or designee. Compliance requirements and waiver applicability vary based on government funding program. Check the laws and regulations for your specific program.

Specifications

Product Classification

Regional Availability	Latin America \| North America
Product Type	Fiber drop cable assembly
Product Brand	PRODIGY™
Product Series	HCA
Government Requirements	Build America Buy America (BABA) compliant*

General Specifications

Cable Type	Dielectric - Universal Flat
Connector A, quantity	1
Color, boot A	Black
Color, connector A	Black
Connector B, quantity	1
Color, boot B	Green
Color, connector B	Green
Interface, Connector A	Prodigy®
Interface, Connector B	SC/APC with pulling sock
Jacket Color	Black
Location of Manufacturing	Catawba, North Carolina
Total Fibers, quantity	1
Transmission Standards	IEC 61753-1 \| IEC 61754-4 \| IEC 61755

Dimensions

Breakout Length, connector B	457.200 mm \| 18 in
Cable Assembly Length Range (m)	1 – 900
Cable Assembly Length Range (ft)	50 – 2000
Cable Outer Diameter	4.6 x 8.0 mm (0.18 x 0.31 in)

Ordering Tree

Click on image to enlarge.

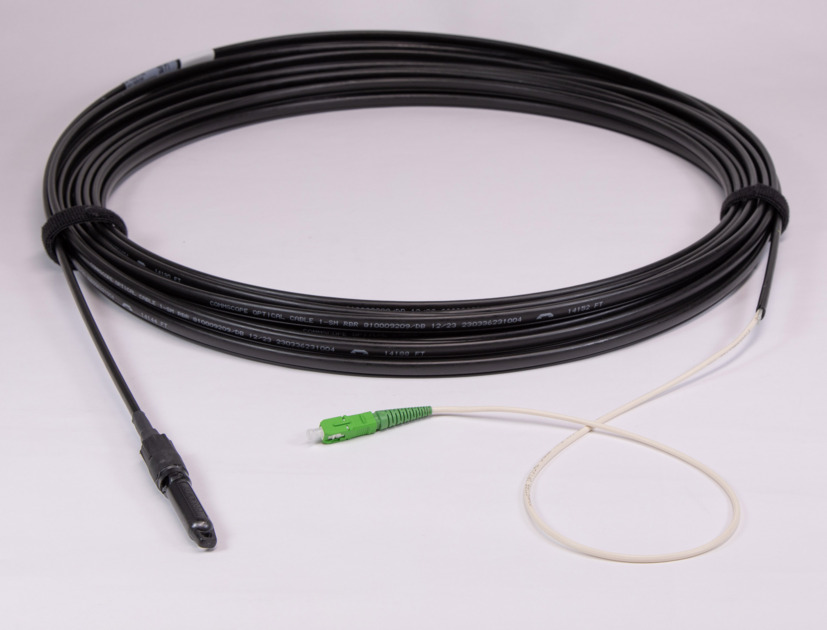

Representative Image

Click on image to enlarge.

Mechanical Specifications

Minimum Bend Radius, loaded	92 mm \| 3.622 in
Minimum Bend Radius, unloaded	64 mm \| 2.520 in
Tensile Load, long term, maximum	400 N \| 89.924 lbf
Tensile Load, short term, maximum	1334 N \| 299.895 lbf
Cable Crush Resistance, maximum	44 N/mm \| 251.246 lb/in
Pulling Tension, maximum	11.340 kg \| 25 lb

Optical Specifications

Fiber Mode	Singlemode
Fiber Type	G.657.A2, TeraSPEED®
Insertion Loss, maximum, connector A	0.4 dB
Insertion Loss, maximum, connector B	0.4 dB
Return Loss, minimum, connector A	65 dB
Return Loss, minimum, connector B	65 dB

Environmental Specifications

Installation temperature	-30 °C to +60 °C (-22 °F to +140 °F)
Operating Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Storage Temperature	-40 °C to +75 °C (-40 °F to +167 °F)
Environmental Space	Outdoor
Jacket UV Resistance	UV stabilized
Qualification Standards	NEMA type 6, 10 ft waterhead \| Telcordia GR-20 \| Telcordia GR-3120

Packaging and Weights

Cable weight	34.4 kg/km \| 23.116 lb/kft
Packaging quantity	1
