760248350 | OCAB-P-SA-01-IGR-300
- Available in:
- EMEA

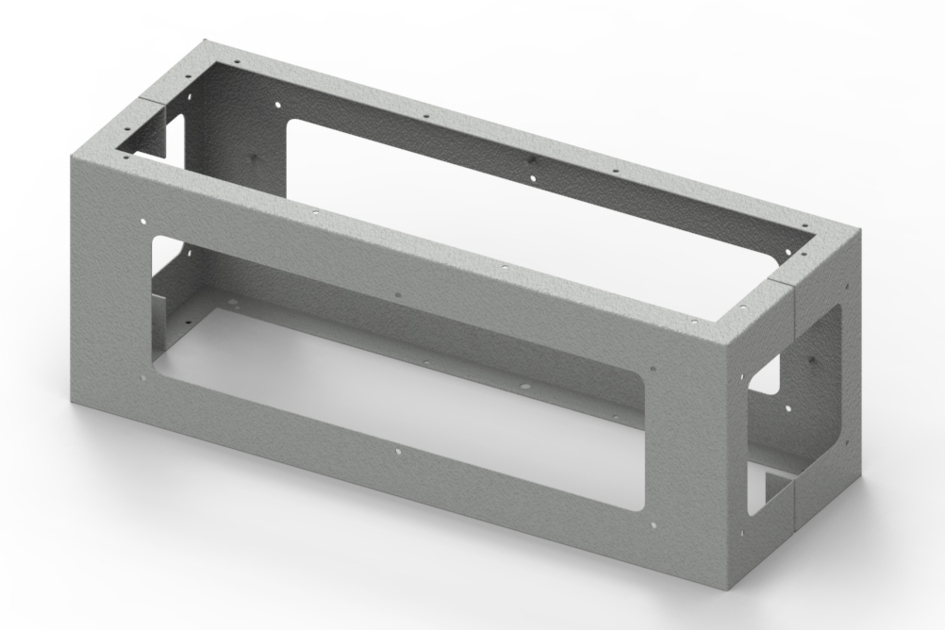

Metal in-ground root, upon which the cabinet can be placed. This 300 mm in-ground root is typically used when no concrete base is available.
Specifications
Product classification
| Regional Availability | EMEA |
| Product Type | Fiber cross-connect hub |
| Product Series | OCAB |
General Specifications
| Color | Light Gray (RAL 7035) |
Dimensions
| Height | 300 mm | 11.811 in |
| Width | 800 mm | 31.496 in |
| Depth | 320 mm | 12.598 in |
Material Specifications
| Finish | Powder coated polyester |
| Material Type | Stainless steel grade 1.4003, 1.5 mm gauge, welded construction |
Packaging and Weights
| Included | Mounting hardware |
| Packaging Type | Pallet |
| Note | No cover plates included - shall be ordered separately |
Regulatory Compliance/Certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
Product classification
| Regional Availability | EMEA |
| Product Type | Fiber cross-connect hub |
| Product Series | OCAB |
General Specifications
| Color | Light Gray (RAL 7035) |
Dimensions
| Height | 300 mm | 11.811 in |
| Width | 800 mm | 31.496 in |
| Depth | 320 mm | 12.598 in |
Material Specifications
| Finish | Powder coated polyester |
| Material Type | Stainless steel grade 1.4003, 1.5 mm gauge, welded construction |
Packaging and Weights
| Included | Mounting hardware |
| Packaging Type | Pallet |
| Note | No cover plates included - shall be ordered separately |
Regulatory Compliance/Certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
