760250899 | OCAB-P-S4-01-IGR-D250xW535

  • Available in:
  • EMEA

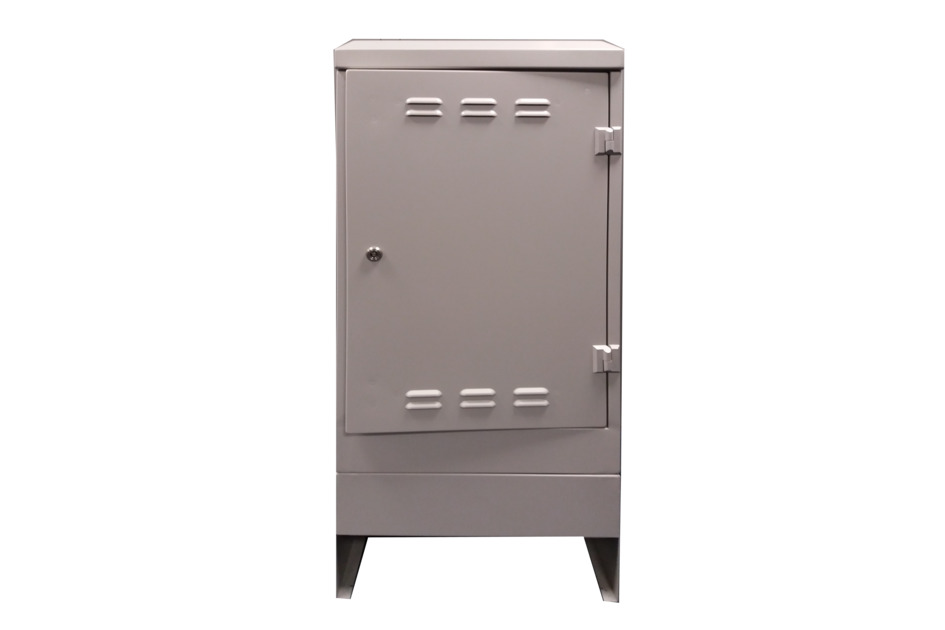

Inground-root for the 72f cabinet, depth 250mm, including mounting hardware

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download

Product classification

Regional Availability EMEA
Product Type Fiber cross-connect hub
Product Series OCAB

General Specifications

Color Light Gray (RAL 7035)
Mounting Cabinet

Dimensions

Height 280 mm | 11.024 in
Width 535 mm | 21.063 in
Depth 250 mm | 9.843 in
Enclosure Size Small

Material Specifications

Finish Powder coated polyester
Material Type Stainless steel grade 1.4003, 1.5 mm gauge, welded construction

Environmental Specifications

Qualification Standards IK10

Packaging and Weights

Included Mounting hardware
Packaging quantity 8
Packaging Type Pallet

Regulatory Compliance/Certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS Compliant
UK-ROHS Compliant
