FPS-OCM Front patching shelf for optical component modules

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants

Configure and display product variants of FPS-OCM-PANELS by selecting options

Features and Benefits

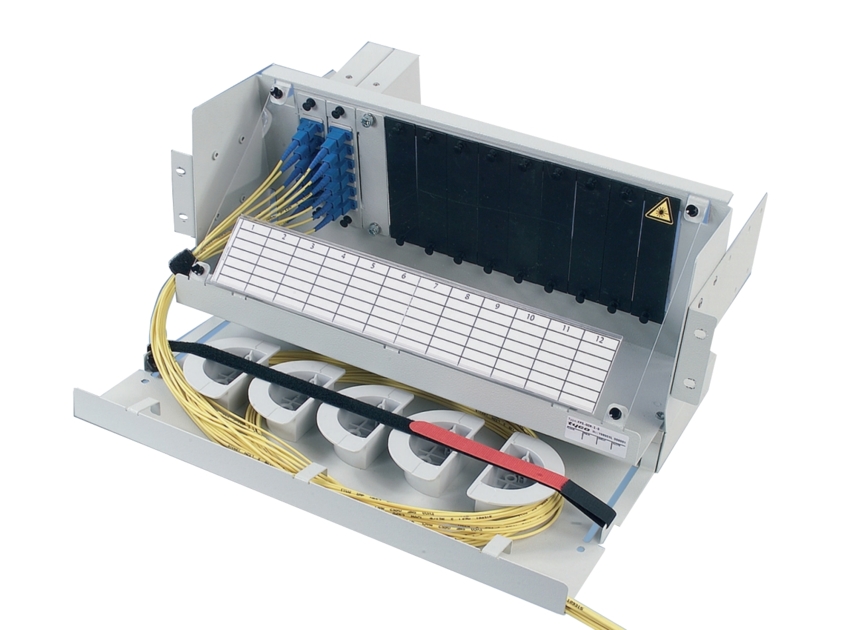

The FPS-OCM is a mechanical shelf assembly that accommodates LGX type of modules in a rack environment. The shelf is typically used in 19” active racks or data racks, but is also compatible with Tyco FIST racks. All shelves have front access to the LGX modules, the patchcords enter and leave via the front. The shelves are painted (powder coated) in light grey (RAL 7035). They can be front- or backmounted in the rack.

The units have the following features, depending on the shelf dimensions (height unit)

1HU
Mounting bracket with slotted hole enables any recessed rack mounting
Compatible with OCM1 and high density OCMF modules.

3HU
High density shelf for OCMF and compatible with OCM1, 2 and 3.

4HU/5HU
A plastic transparent cover including identification label is provided
A storage basket for patchcord overlength storage is optional available. It occupies 1 height unit (19” standard) and can be mounted under the FPS-OCM.
Shelf for LGX modules and compatible with OCMF when the optional OCMFframe is installed.
