760033936 | 600G2-1U-UP-SD

  • Available in:
  • Asia
  • Australia/New Zealand
  • China
  • India

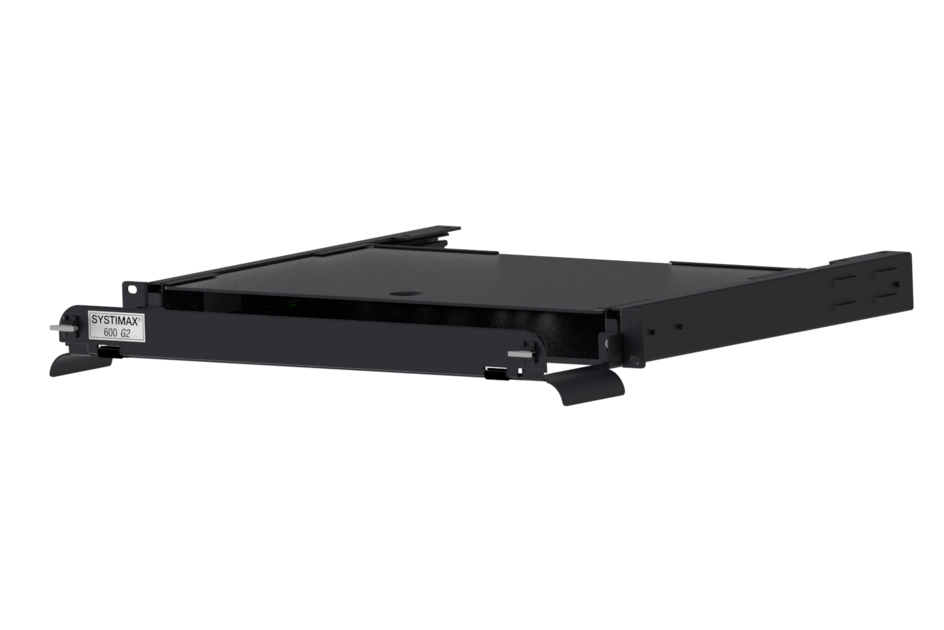

G2 1U Sliding Faceplate Panel

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download

Product classification

Regional Availability Asia | Australia/New Zealand | China | India
Regional Availability Note Discontinued in all other regions since December 14, 2019 and replaced by 760234738 | SD-1U-FX-UP in North America, Latin America and EMEA
Portfolio CommScope®
Product Type Fiber patch panel

General Specifications

Application Accepts one G2 front faceplate | Accepts two RoloSplices with three trays each
Color Black
Interface, front Unloaded
Rack Units 1
Shelf Movement Sliding
Total Ports, quantity 0

Dimensions

Height 44.45 mm | 1.75 in
Width 482.6 mm | 19 in
Depth 457.2 mm | 18 in

Material Specifications

Finish Powder coated
Material Type Steel

Packaging and Weights

Weight, net 4.082 kg | 9 lb

Regulatory Compliance/Certifications

Agency Classification
CHINA-ROHS Above maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted
